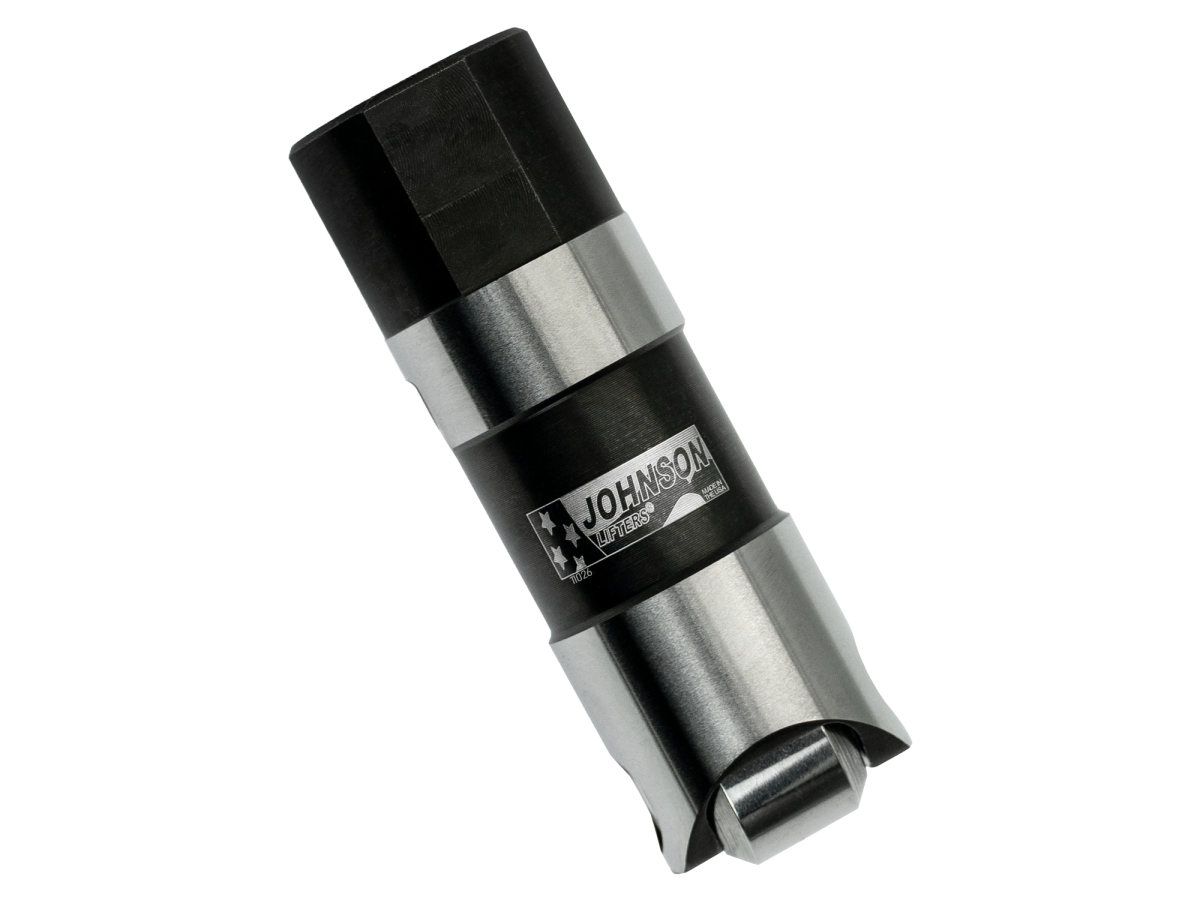

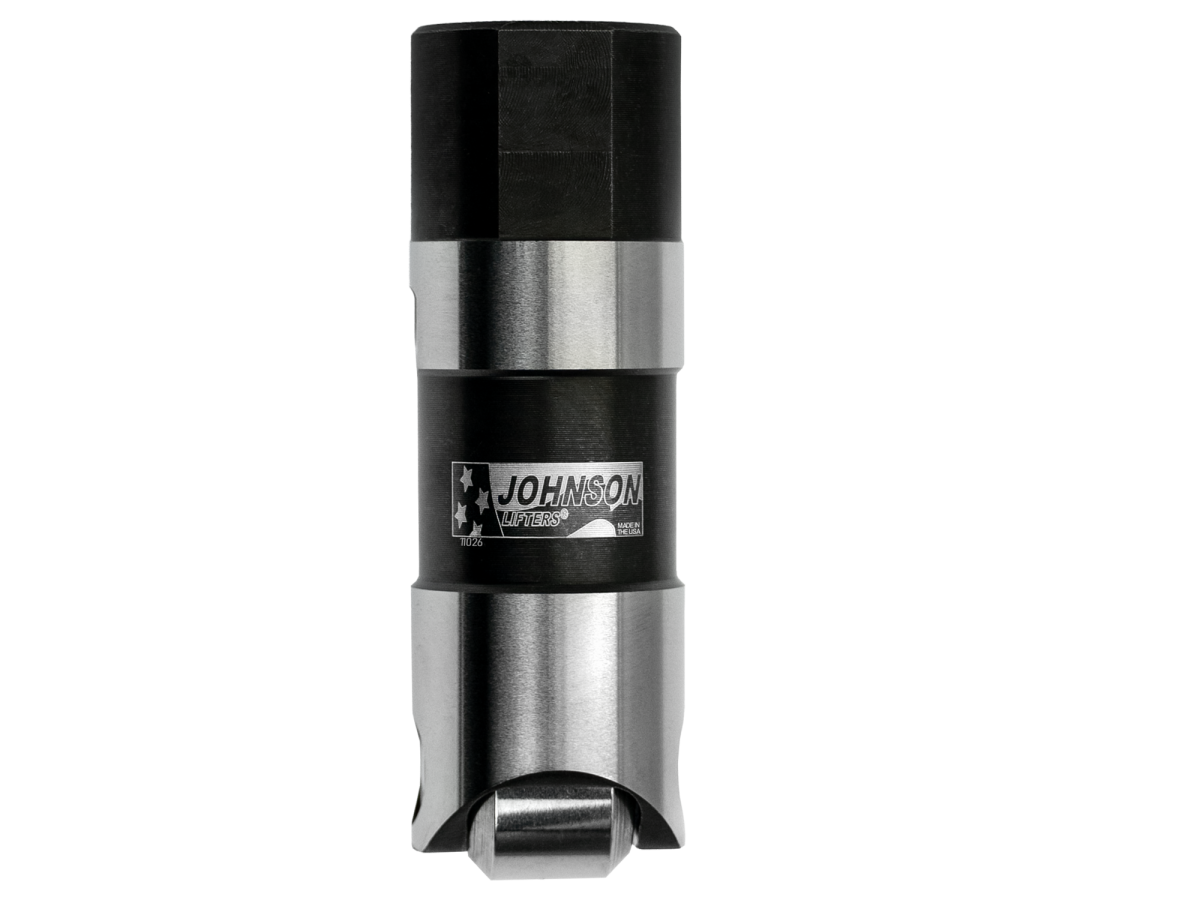

Katech Spec Johnson 2110-K .8422" ± .0002" LS/LT True Drop-In Hydraulic Roller Lifter Set

Katech Spec Johnson 2110-K .8422" ± .0002" LS/LT True Drop-In Hydraulic Roller Lifter Set

Precision-Ground for Controlled Oiling and Stable Valvetrain Performance

The Katech Spec Johnson 2110-K LS/LT Drop-In Hydraulic Roller Lifter Set combines genuine Johnson 2110-K hydraulic roller lifters with Katech’s precision outside diameter specification for high-performance LS and LT engine applications. Each lifter is precision ground to Katech’s .8422" ± .0002" outside diameter specification to provide a consistent dimensional starting point when establishing lifter-to-bore clearance.

Designed as a true drop-in lifter for engines using OEM-style lifter guides and trays, these lifters provide precise hydraulic response and controlled leakdown without requiring a link-bar lifter conversion. The cold-forged, extra-long piston is precision ground and fitted to deliver predictable leakdown characteristics and consistent lash control when paired with the appropriate camshaft profile, valve spring pressure, preload, and valvetrain geometry.

A high-flow, quick-reacting disc-style check valve supports hydraulic stability at elevated engine speeds, while precision oil metering provides proper lubrication to the rocker arms without excessive oil loss through the lifter circuit. Cold-forged, heat-treated steel bodies, precision needle roller bearings, and high-chromium steel axles provide the durability required for demanding street and racing engine combinations.

Features & Benefits

• Genuine Katech Spec Johnson 2110-K Hydraulic Roller Lifters
• Precision Ground to Katech’s .8422" ± .0002" Outside Diameter Specification
• Provides a Consistent Dimensional Starting Point for Lifter-to-Bore Clearance
• Designed as a True Drop-In Lifter for Engines Using OEM-Style Lifter Guides and Trays
• No Link-Bar Lifter Conversion Required When Used with Compatible OEM-Style Lifter Trays
• Extra-Long Precision-Fitted Piston Supports Controlled Leakdown and Consistent Lash Control
• High-Flow, Quick-Reacting Disc-Style Check Valve Supports Hydraulic Stability at Elevated Engine Speeds
• Precision Oil Metering Provides Rocker Arm Lubrication Without Excessive Oil Loss Through the Lifter Circuit
• Cold-Forged, Heat-Treated Steel Bodies Provide Excellent Strength and Wear Resistance
• Precision Needle Roller Bearings with High-Chromium Steel Axles Support Long Service Life
• Suitable for High-Performance Street, Road Racing, Endurance Racing, and Drag Racing Applications
• Precision Ground to Katech Specifications and Quality Controlled

Specifications

• Lifter Type: Katech Spec Johnson 2110-K LS/LT Drop-In Hydraulic Roller Lifter Set
• Outside Diameter: .8422" ± .0002"
• Total Plunger Travel: .093"
• Manufacturer Suggested Preload: .025" – .045"
• Katech Recommended Preload Range: .035" – .045"
• Construction: Cold-Forged, Heat-Treated Steel Body
• Internal Design: Extra-Long Precision-Fitted Piston with Controlled Leakdown
• Check Valve: High-Flow, Quick-Reacting Disc Style
• Roller Assembly: Precision Needle Roller Bearing with High-Chromium Steel Axle
• Oiling: Precision Metering for Rocker Arm Lubrication

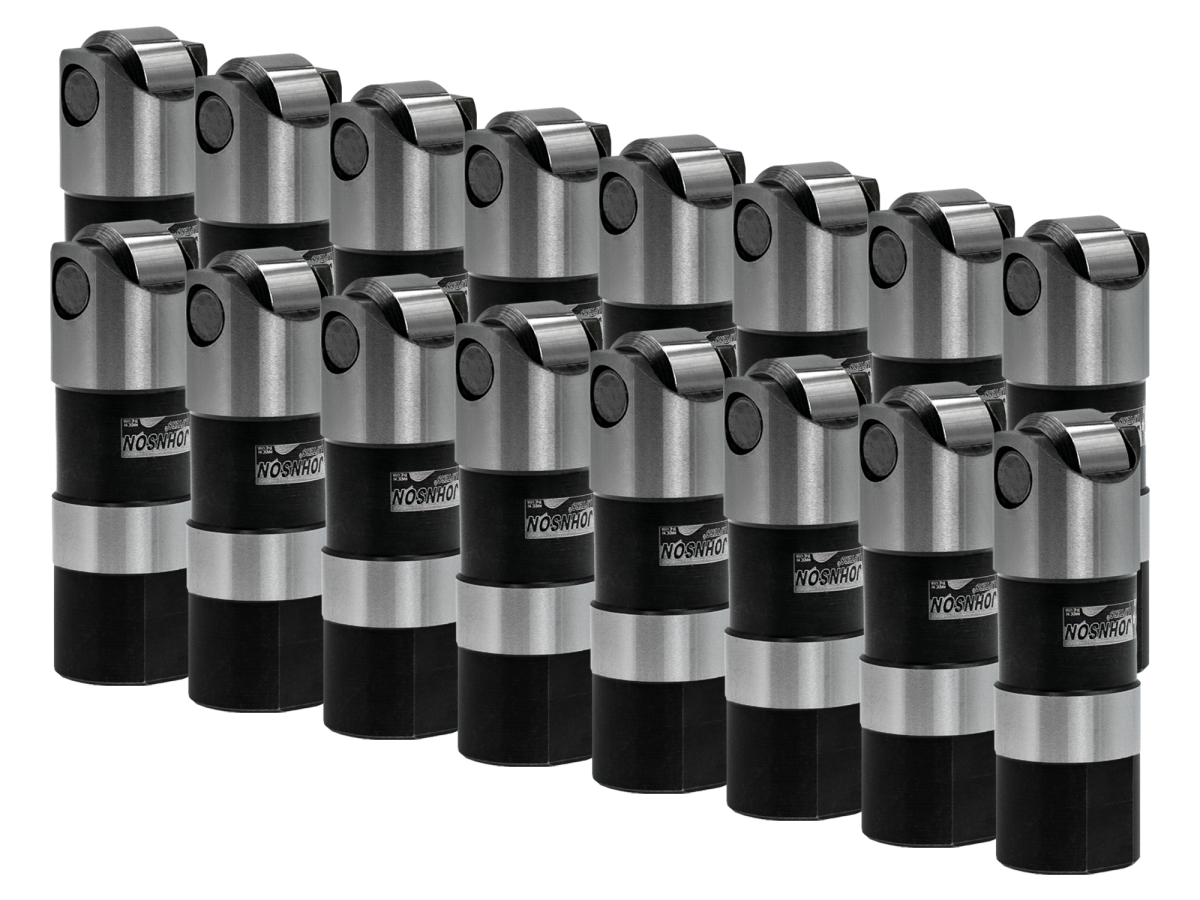

• Quantity: Set of 16 Lifters

Fitment

• LS and LT Engine Architectures Using Standard Hydraulic Roller Lifters
• Designed for Engines Using OEM-Style Lifter Guides and Trays
• Non-AFM/DOD Valvetrain Configurations
• High-Performance Street, Road Racing, Endurance Racing, and Drag Racing LS/LT Engine Builds

Installation Notes

• Measure and Verify Lifter-to-Bore Clearance Before Final Engine Assembly
• Do Not Assume All OEM or Aftermarket Lifter Bores Have the Same Diameter
• Aftermarket Blocks, Including Dart Blocks, May Have Tighter Lifter Bores and Require Additional Clearance Verification
• Verify Lifter Preload, Valve Spring Pressure, Pushrod Length, and Overall Valvetrain Geometry During Installation
• Check Lifter Roller-to-Camshaft Compatibility During Engine Assembly
• Confirm Compatibility with the Camshaft Profile and Intended Engine Operating Range
• Katech Recommended Preload Range Is .035" – .045"
• Follow Proper Cleaning, Lubrication, and Engine Assembly Procedures

What's Included

• Sixteen (16) Katech Spec Johnson 2110-K LS/LT Drop-In Hydraulic Roller Lifter Set

Why Choose Katech?

The difference is in the specification. Genuine Johnson 2110-K hydraulic roller lifters are precision ground to Katech’s .8422" ± .0002" outside diameter specification, providing engine builders with a consistent dimensional starting point when establishing lifter-to-bore clearance in OEM LS and LT engine blocks.

Combined with Johnson’s proven hydraulic roller design, controlled leakdown characteristics, and durable construction, the Katech specification delivers the precision, hydraulic stability, and long-term reliability demanded in high-performance street and racing engines. Every precision engine build is unique, so lifter-to-bore clearance, preload, spring pressure, and overall valvetrain geometry should always be measured and verified during assembly. Precision Ground to Katech Specifications and Quality Controlled, these lifters reflect the same attention to detail found throughout Katech’s championship-winning engine programs.
