Katech WHISTLER Compression Ratio Tester

Katech WHISTLER™ Compression Ratio Tester

Fast, Accurate Compression Ratio Measurement Without Removing the Cylinder Head

The Katech WHISTLER™ Compression Ratio Tester is an electronic measurement tool designed to determine the compression ratio of virtually any engine without removing the cylinder head. Designed for professional engine builders, race teams, technical inspectors, sanctioning bodies and performance shops, the WHISTLER™ provides fast compression ratio measurement across a wide range of engine configurations.

To perform a measurement, remove a spark plug and install the appropriate WHISTLER™ adapter. Enter the number of cylinders, engine displacement and engine temperature, then follow the supplied operating procedure to measure and display the engine's compression ratio to the nearest hundredth. The WHISTLER™ is accurate to ±0.05 compression ratio.

Features & Benefits

• Measures Engine Compression Ratio Without Removing the Cylinder Head
• Accurate to ±0.05 Compression Ratio
• Displays Compression Ratio to the Nearest Hundredth
• No Limitation on the Number of Cylinders
• No Restriction on Engine Displacement
• Onboard Barometric Pressure Sensor
• Built-In Verification Bottle for Checking Unit Accuracy
• Multiple Spark Plug Adapters Included
• Designed for Engine Building, Performance Testing and Motorsports Technical Inspection

The WHISTLER™ Compression Ratio Tester is Proudly Engineered and Manufactured by Katech Engineering in Clinton Township, Michigan, USA.

Technical Specifications

• Accuracy: ±0.05 Compression Ratio
• Display Resolution: Nearest Hundredth
• Calibrated Chamber Volume Range: 40cc to 120cc
• Engine Temperature Range: 30°F to 200°F
• Cylinder Limitation: None
• Engine Displacement Limitation: None
• Atmospheric Compensation: Onboard Barometric Pressure Sensor

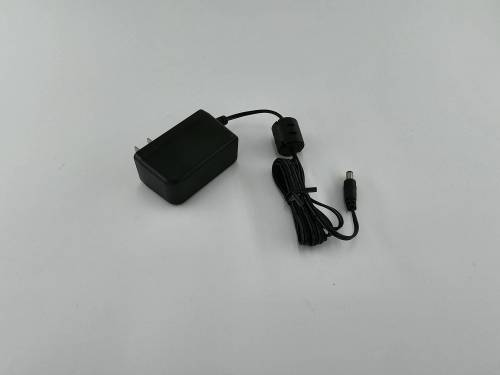

• Power Requirement: 120V AC Supply
• Air Requirement: Low-Volume Compressed Air Source
• Recommended Minimum Air Tank Volume: 10 Gallons

Proven in Motorsports Technical Inspection

The Katech WHISTLER™ has an established history as a compression ratio verification tool in professional and organized motorsports, where accurate and repeatable engine inspection is critical.

• NASCAR: Multiple Katech WHISTLER™ Compression Ratio Testers are used for engine compression ratio verification and technical inspection.
• Sports Car Club of America (SCCA): Published official procedures specifically for using the WHISTLER™ Compression Ratio Tester to determine engine compression ratio.
• American Power Boat Association (APBA): Inboard inspection rules specifically identify the Katech WHISTLER™ Compression Ratio Tester as a method that may be used to determine an engine's compression ratio.
• USAC: A Katech WHISTLER™ Compression Ratio Tester customer representing organized motorsports and technical inspection.
• ARCA West: A Katech WHISTLER™ Compression Ratio Tester customer within stock car racing.
• Hendrick Motorsports: A Katech WHISTLER™ Compression Ratio Tester customer within professional race engine development.
• Jefferson Speedway, Wisconsin: A Katech WHISTLER™ Compression Ratio Tester customer within local short-track racing.
• Barrie Speedway, Canada: A Katech WHISTLER™ Compression Ratio Tester customer within Canadian short-track racing.

Additional customers across automotive engineering, research, racing components and marine performance include Bentley Motors Ltd., FEV, Ferrea Racing Components, Oak Ridge National Laboratory, GM R&D, Teague Custom Marine and Mercury Marine.

From professional racing to sanctioning-body technical inspection, the WHISTLER™ provides a non-invasive method of verifying engine compression ratio without removing the cylinder head.

What's Included

• Katech WHISTLER™ Compression Ratio Tester
• FN Spark Plug Adapter
• BN Spark Plug Adapter
• BL Spark Plug Adapter
• J Spark Plug Adapter
• 18mm Spark Plug Adapter
• Built-In Verification Bottle
• Instruction Sheet
• Pelican Hard Case

NOTE: 12mm motorcycle spark plug adapter is available separately.

Calibration & Repair Service

For WHISTLER™ calibration or repair service, please call Katech Sales at 586-791-4120.

Why Choose the Katech WHISTLER™?

The WHISTLER™ combines broad engine compatibility, precise compression ratio measurement and built-in verification capability in a specialized tool developed for professional engine measurement and motorsports technical inspection. As the exclusive manufacturer of the WHISTLER™, Katech continues to provide the equipment, replacement components, calibration and repair support needed to keep these specialized tools in service.
