Katech LT5 95MM Straight Throttle Body Adapter

Katech LT5 95mm Straight Throttle Body Adapter

LT5 THROTTLE BODY CONVERSION · STRAIGHT 95MM BORE · 6061-T6 BILLET ALUMINUM

The Katech LT5 95mm Straight Throttle Body Adapter allows an OEM GM LT5 95mm electronic throttle body to be installed on compatible GM Gen V LT1 and LT4 applications. Its straight 95mm bore is designed for LT1 engines equipped with a ported LT2 or MSD intake manifold and LT4 engines equipped with a ported supercharger snout.

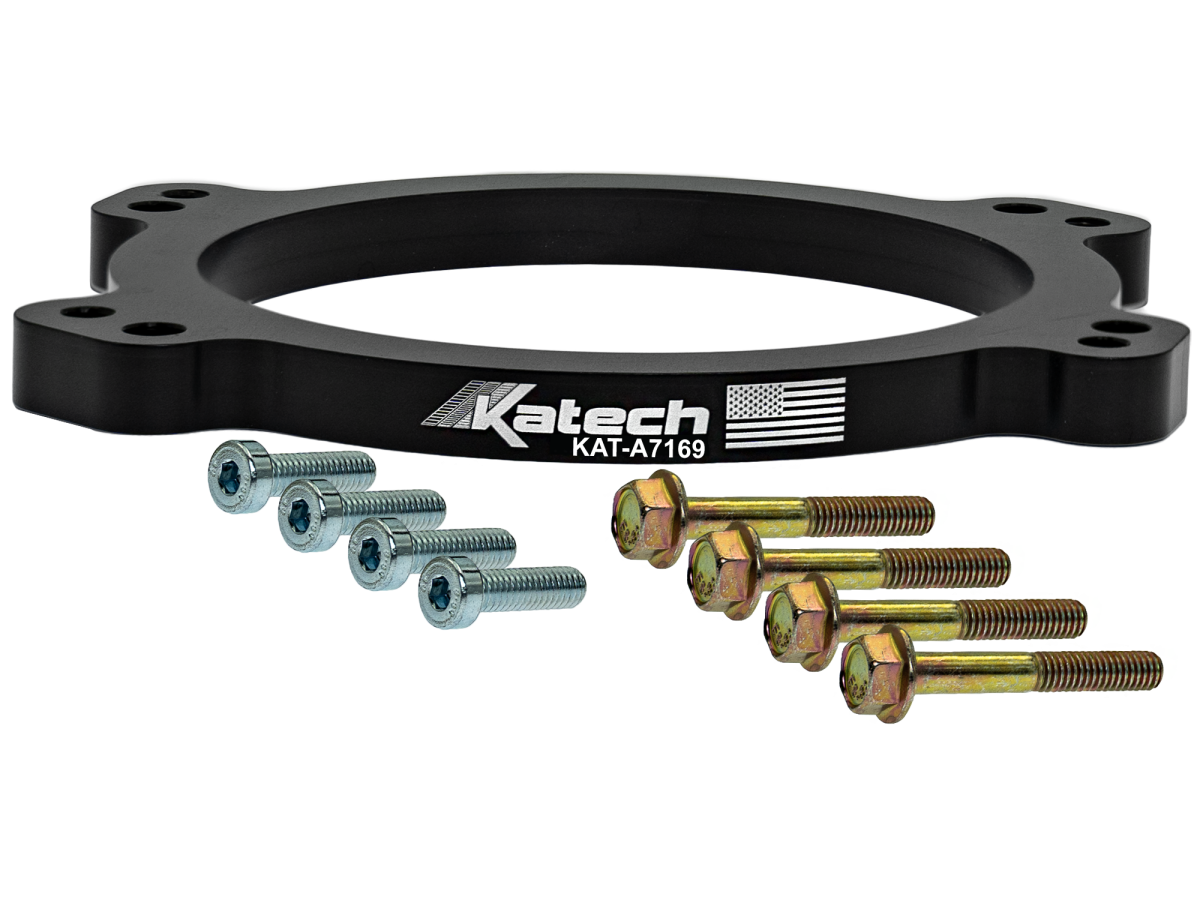

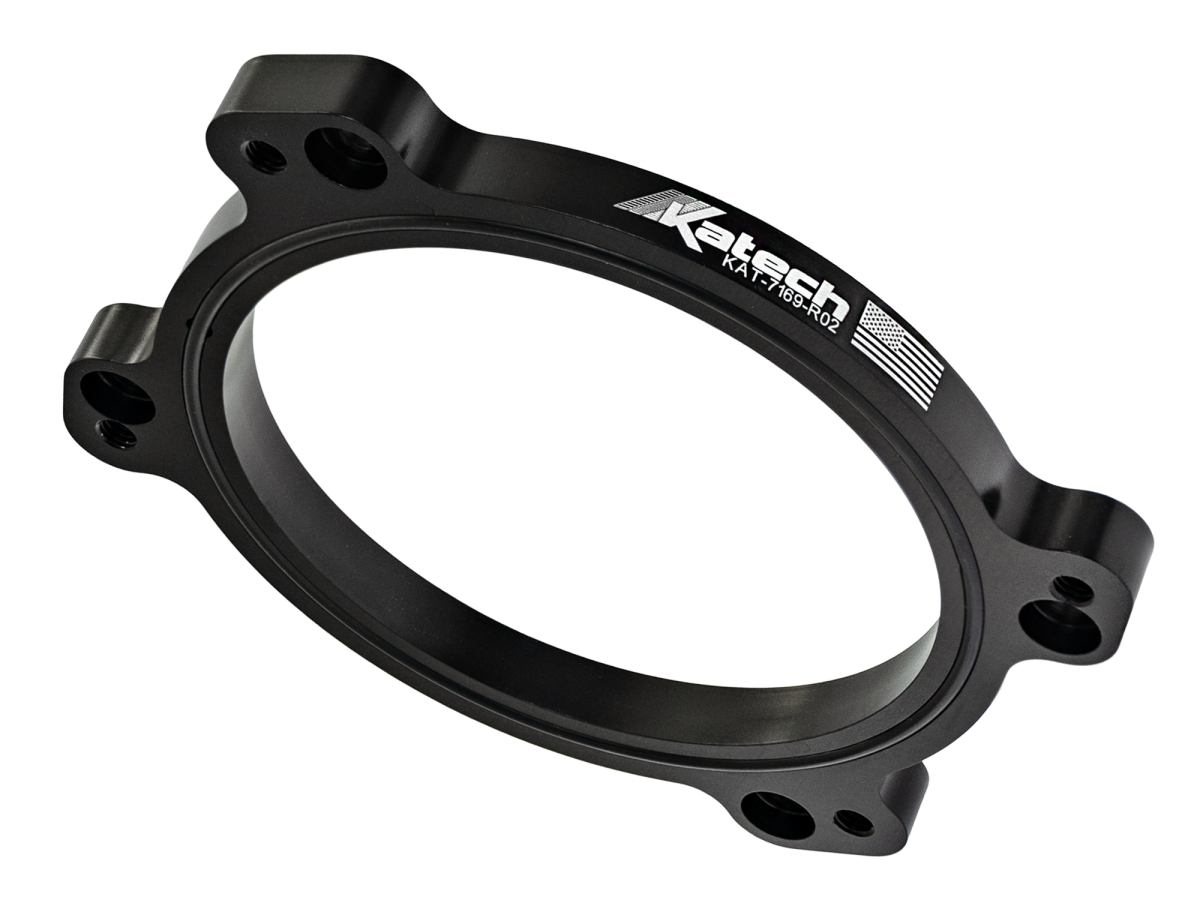

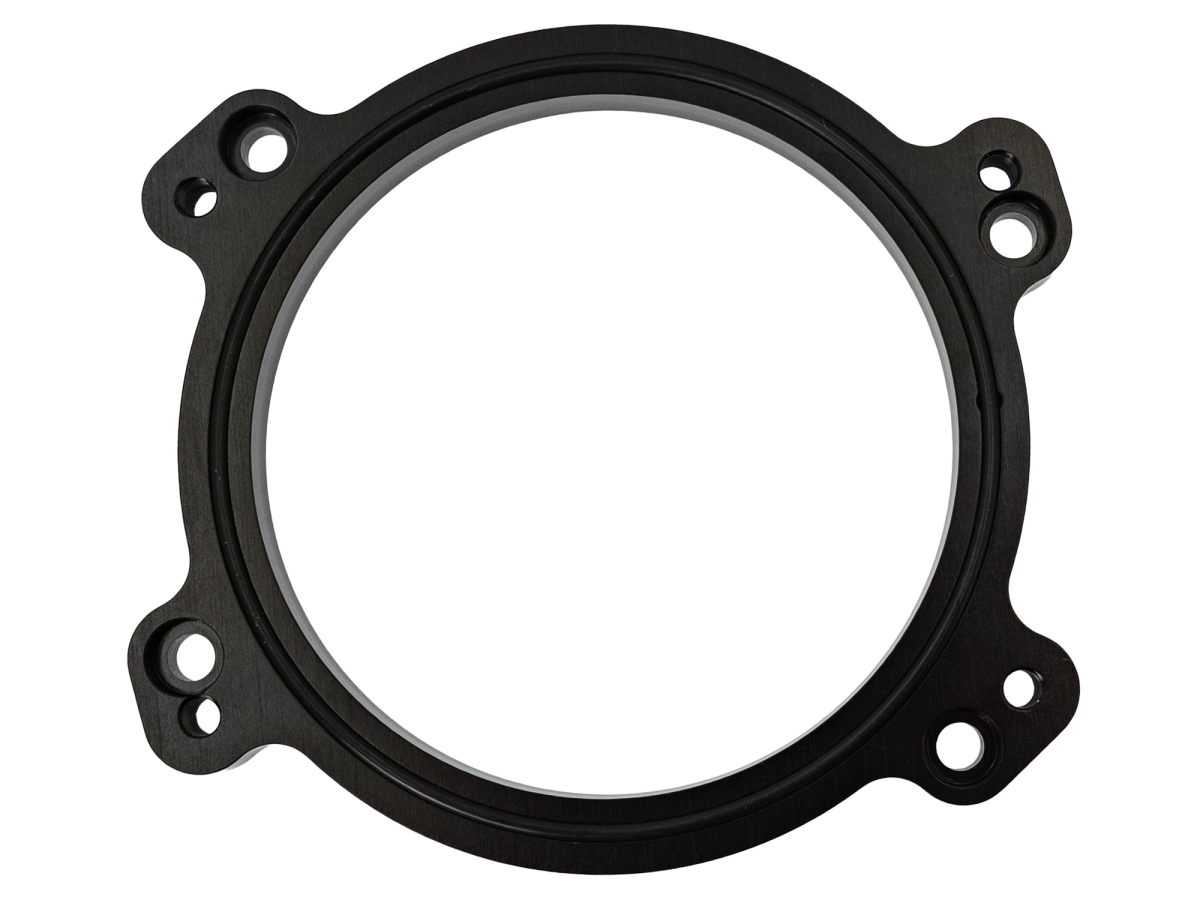

Precision-machined from 6061-T6 billet aluminum and finished with a durable black anodized coating, the adapter provides the required mounting interface between the OEM GM LT5 95mm electronic throttle body and a compatible MSD LT1 intake manifold or ported LT4 supercharger snout. Mounting bolts and an O-ring are included.

Features & Benefits

• Allows Use of an OEM GM LT5 95mm Electronic Throttle Body on Compatible LT1 and LT4 Applications
• Straight 95mm Bore Design
• Designed for LT1 Applications Equipped with a Ported LT2 or MSD Intake Manifold
• Designed for LT4 Applications Equipped with a Ported Supercharger Snout
• Provides the Required Mounting Interface Between the OEM GM LT5 95mm Throttle Body and Compatible LT1/LT4 Applications
• Precision-Machined from 6061-T6 Billet Aluminum
• Durable Black Anodized Finish
• Includes Mounting Bolts and O-Ring
• Proudly Engineered and Machined at Katech Engineering in Clinton Township, Michigan, USA!

Specifications

• Product Type: Throttle Body Adapter
• Adapter Design: Straight Bore
• Bore Size: 95mm
• Throttle Body Compatibility: OEM GM LT5 95mm Electronic Throttle Body
• Engine Compatibility: GM Gen V LT1 and LT4
• LT1 Intake Compatibility: Ported LT2 or MSD Intake Manifold
• LT4 Supercharger Compatibility: Ported LT4 Supercharger Snout
• Material: 6061-T6 Billet Aluminum
• Finish: Black Anodized
• Included: Throttle Body Adapter, Mounting Bolts, and O-Ring

Vehicle & Engine Fitment

Vehicle Applications

Chevrolet

• 2014–2019 Chevrolet C7 Corvette Stingray with LT1 6.2L Engine and MSD Intake Manifold
• 2017–2019 Chevrolet C7 Corvette Grand Sport with LT1 6.2L Engine and MSD Intake Manifold
• 2016–2024 Chevrolet Gen 6 Camaro SS with LT1 6.2L Engine and Ported LT2 or MSD Intake Manifold
• 2015–2019 Chevrolet C7 Corvette Z06 with LT4 6.2L Supercharged Engine and Ported LT4 Supercharger Snout
• 2017–2024 Chevrolet Gen 6 Camaro ZL1 with LT4 6.2L Supercharged Engine and Ported LT4 Supercharger Snout

Cadillac

• 2016–2019 Cadillac CTS-V with LT4 6.2L Supercharged Engine and Ported LT4 Supercharger Snout
• 2022+ Cadillac CT5-V Blackwing with LT4 6.2L Supercharged Engine and Ported LT4 Supercharger Snout

Engine Applications

• GM Gen V LT1 Engines Equipped with a Ported LT2 or MSD Intake Manifold
• GM Gen V LT4 Engines Equipped with a Ported LT4 Supercharger Snout
• Custom GM Gen V LT1 and LT4 Engine Builds Using a Compatible MSD Intake Manifold or Ported LT4 Supercharger Snout

Important Fitment Notes

• Designed for Use with an OEM GM LT5 95mm Electronic Throttle Body
• Features a Straight 95mm Bore
• LT1 Applications Require a Compatible Ported LT2 MSD Intake Manifold
• LT4 Applications Require a Ported LT4 Supercharger Snout
• Not Intended for Stock LT1 Intake Manifolds or Unported LT4 Supercharger Snouts
• For Stock LT1 Intake Manifolds and Unported LT4 Supercharger Snouts, Use Katech LT5 95MM to 87MM Tapered Throttle Body Adapter KAT-A7165

Why Choose Katech?

For decades, Katech has engineered championship-winning engines and precision performance components trusted by professional racers, OEMs, and enthusiasts around the world. Every Katech product is developed with an uncompromising commitment to quality, fit, function, durability, and performance.

The Katech LT5 95mm Straight Throttle Body Adapter is precision-machined from 6061-T6 billet aluminum to provide the correct mounting interface for installing an OEM GM LT5 95mm throttle body on compatible LT1 and LT4 applications. Its straight-bore design, durable black anodized finish, and application-specific fit provide the strength, reliability, and professional appearance expected from a Katech-engineered component.
