Katech Gen V LT5 High Flow High Pressure Fuel Pump Bypass Line

Katech Gen V LT5 High Flow High Pressure Fuel Pump Bypass Line

Parallel Port Injection Fuel Feed for High-Horsepower, E85-Fueled LT5 Builds.

The Katech Gen V LT5 High Flow High Pressure Fuel Pump Bypass Line addresses a fuel delivery limitation identified during Katech's development of high-horsepower, E85-fueled LT5 engines. In these applications, Katech observed significant fuel feed pressure drop-off at the port injection rails as fuel demand increased.

Katech's solution supplies the port injection system in parallel with the high pressure fuel system, replacing the factory series feed arrangement. This revised routing is designed to address the port injection supply restriction in demanding LT5 applications.

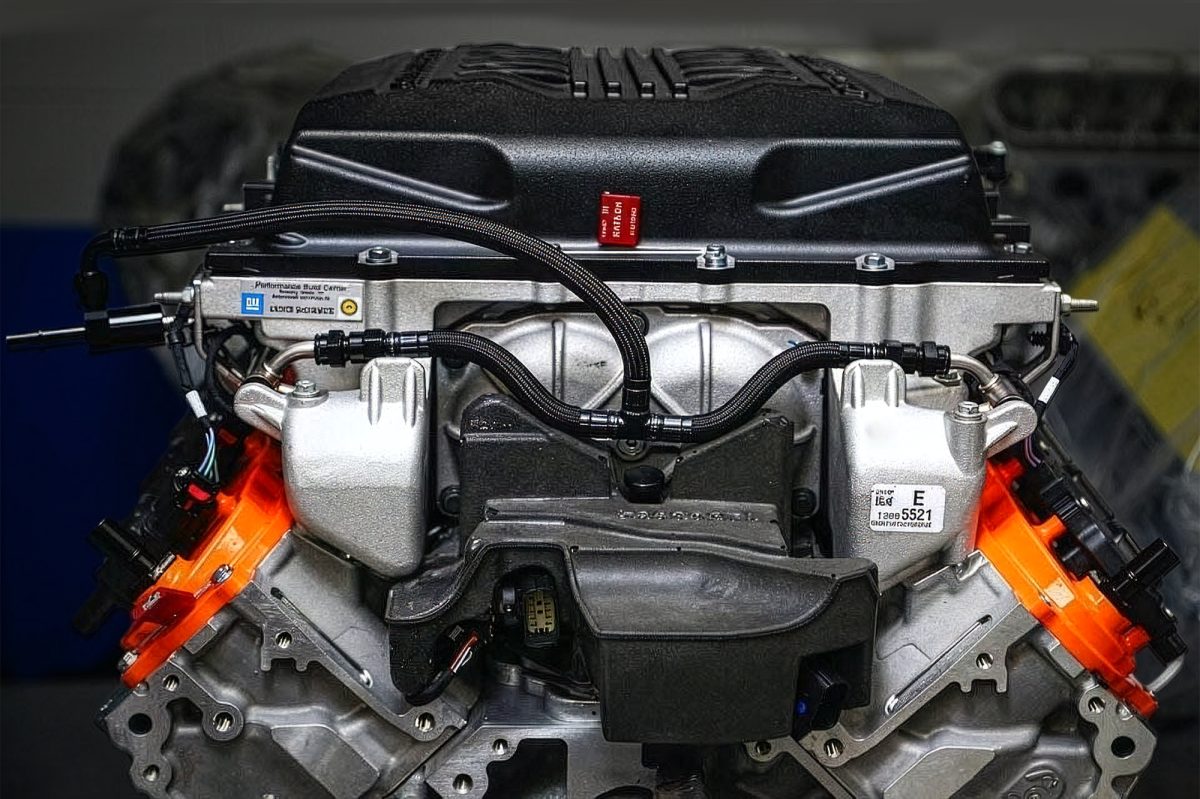

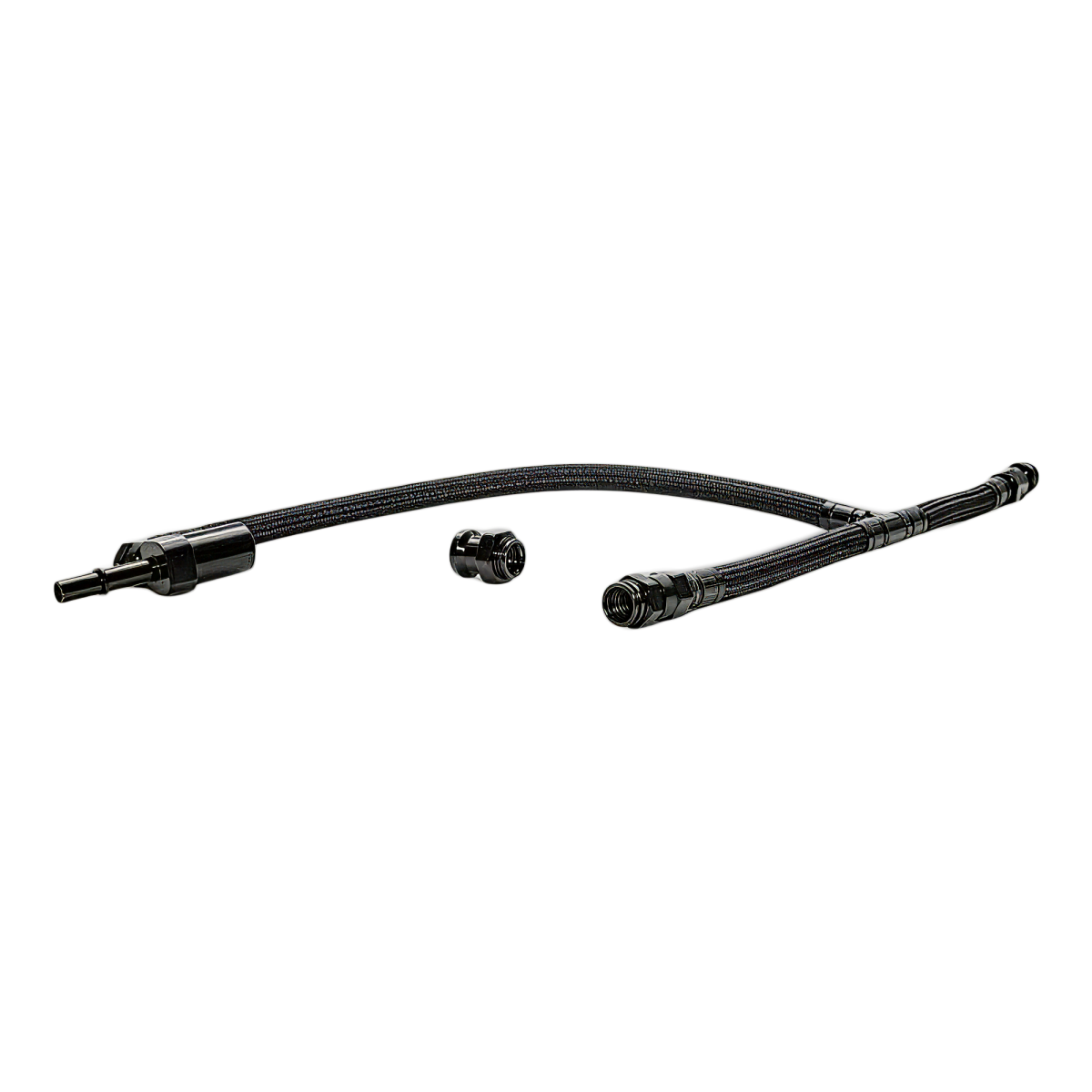

Constructed from BMRS race-grade fuel hose with pre-crimped fittings, the Katech Gen V LT5 High Flow High Pressure Fuel Pump Bypass Line is designed for Gen V LT5 engines, including the 2019 Chevrolet Corvette ZR1. Installation can be completed in the vehicle without removing the supercharger.

Features & Benefits

• Parallel Fuel Feed: Supplies the Port Injection System in Parallel with the High Pressure Fuel System
• Revised Fuel Routing: Addresses the Factory Series Feed Arrangement in High-Demand LT5 Applications
• E85 Performance Application: Developed During Katech's High-Horsepower, E85-Fueled LT5 Engine Work
• BMRS Fuel Hose: Race-Grade Hose Construction with Pre-Crimped Fittings
• LT5 Fitment: Designed for Gen V LT5 Engines, Including the 2019 Corvette ZR1
• In-Vehicle Installation: Can Be Installed without Removing the Supercharger
• No Additional Screws or Mounting Hardware: Designed to Connect to the Existing Fuel System

Technical Specifications

Fitment

Chevrolet:

• 2019 Corvette ZR1: Gen V 6.2L LT5 Engine
• Other Gen V LT5 Applications: Confirm Fuel Line Routing and Connection Compatibility for Engine Swaps or Modified Fuel Systems

Contact Katech Technical Sales at 586-791-4120 to confirm compatibility with your specific LT5 fuel system configuration.

Important Installation Notes

• Fuel System Capacity: Fuel Pumps, Injectors, Supply Lines, and Controls Must Support the Intended Power Level and Ethanol Content
• Fuel Pressure Verification: Check Port Injection Supply Pressure under Load after Installation
• Hose Routing: Maintain Clearance from Heat Sources, Moving Components, and Abrasion Points
• Connection Verification: Confirm Proper Engagement of All Fuel Line Connections
• Leak Check: Verify the Fuel System Is Leak-Free before Operating the Vehicle
• Professional Installation: Recommended for Proper Fuel System Setup and Verification

The Katech Gen V LT5 High Flow High Pressure Fuel Pump Bypass Line addresses fuel routing restrictions. Achievable horsepower and fuel pressure stability depend on the complete fuel system, engine configuration, fuel, and calibration.

Why Choose Katech

The Katech Gen V LT5 High Flow High Pressure Fuel Pump Bypass Line was developed in response to a fuel supply limitation observed in Katech's own high-output LT5 engine work. Its parallel feed arrangement targets the port injection supply path for appropriately equipped E85 performance builds.

By applying experience from engine development to a specific fuel delivery problem, Katech created an application-specific line that can be installed without removing the supercharger. Katech Technical Sales can help determine how the Katech Gen V LT5 High Flow High Pressure Fuel Pump Bypass Line fits your fuel system and performance goals.
