Katech LS .650 Lift Beehive Tool Steel Valve Spring Kit

The Katech LS .650 Lift Beehive Tool Steel Valve Spring Kit with PSI-1511ML Springs and H13 Tool Steel Retainers – a high-performance solution made entirely in the USA. Elevate your engine's performance with precision engineering and top-quality materials.

Katech LS .650 Lift Beehive Tool Steel Valve Spring Kit Key Features

PSI-1511ML Valve Springs | The heart of this kit lies in the PSI-1511ML valve springs, designed for maximum durability and performance.
PSI-1511ML springs feature the innovative Max Life treatment, ensuring extended lifespan and consistent performance under demanding conditions.
Engineered to meet the highest standards, these valve springs provide optimal valve control and reliability.

Katech H13 Tool Steel Retainers | Complementing the PSI-1511ML springs are the Katech H13 tool steel retainers, known for their exceptional strength and durability.
Crafted from premium H13 tool steel, these retainers offer superior wear resistance and toughness compared to Titanium, ensuring longevity in high-stress environments.
Precision-machined to exact specifications, the H13 tool steel retainers are lighter than OEM retainers and contribute to enhanced valve stability and overall engine efficiency.

Made in the USA | We take pride in the fact that every component of this valve spring kit is made in the United States, adhering to the highest quality standards.
By choosing Katech, you are not only investing in superior performance and exceptional durability but also supporting American craftsmanship.

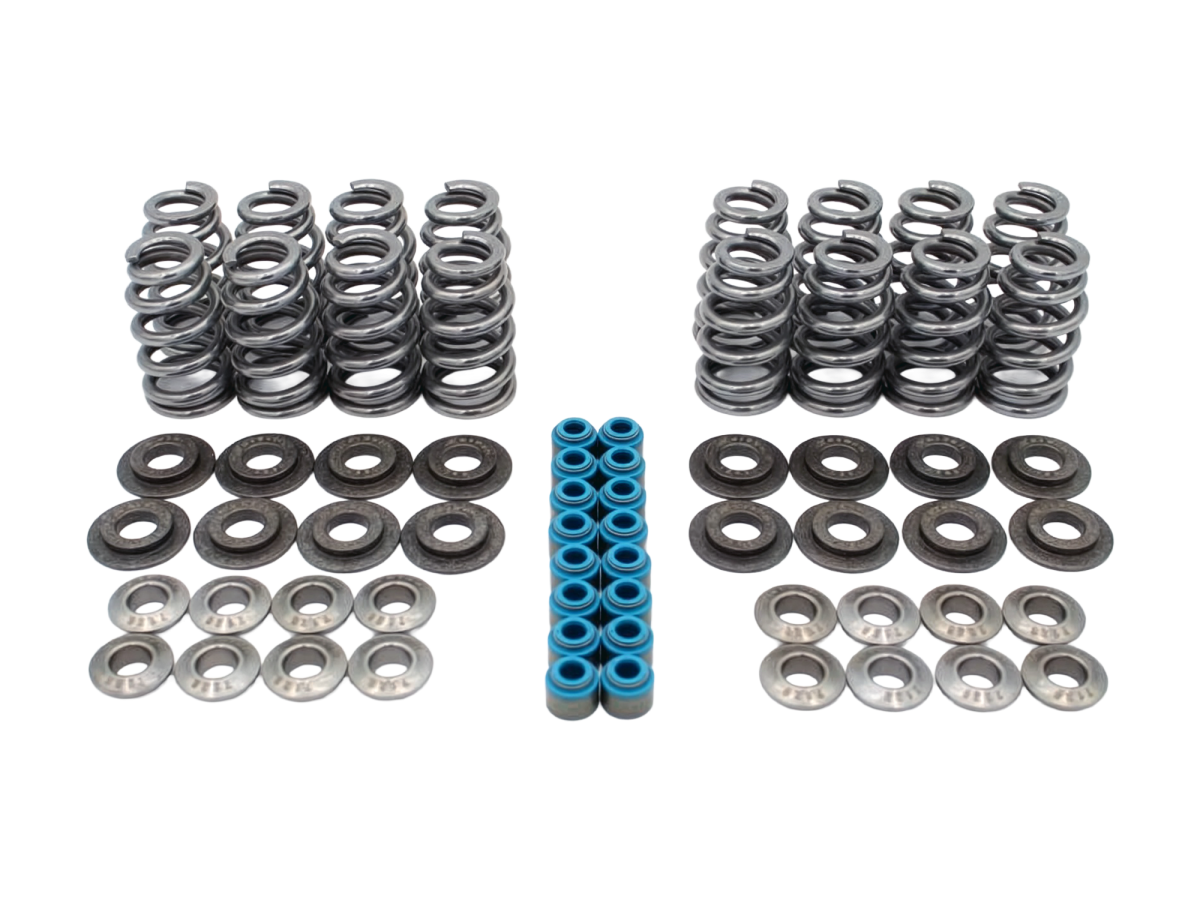

Katech LS .650 Lift Beehive Tool Steel Valve Spring Kit

PSI-1511ML - Valve Springs - QTY 16
KAT-7128 - H13 Tool Steel Retainers - QTY 16
KAT-6687 - Steel Spring Locator - QTY 16
KAT-7481 - Viton Valve Seal - QTY 16

SPRING SPECIFICATIONS
130 lbs @ 1.800"
380 lbs @ 1.150"
Coil bind @ 1.100"

This is a drop-in kit for most 15° LS heads and LS7. This kit will NOT fit the LS9.

NOTE | Requires the use of OEM GM valve locks.
