MAGNUSON TVS2650R Magnum C7 Corvette Z06 LT4 Supercharger System | 2015–2019

C7 Corvette Z06 Supercharger System

Race-Engineered Boost for the LT4-Powered C7 Corvette Z06

The MAGNUSON TVS2650R Magnum C7 Corvette Z06 LT4 Supercharger System is built for Z06 owners who expect more than factory performance. Engineered for 2015–2019 Chevrolet Corvette Z06 models equipped with the GM 6.2L LT4 supercharged V8, this high-capacity positive displacement supercharger system is designed to increase airflow and performance beyond the factory LT4 supercharger while maintaining OEM-style integration and drivability.

With approximately 726 horsepower and 690 lb-ft of torque at the crank, the TVS2650R Magnum delivers an estimated 76 Horsepower Increase over factory LT4 output when installed with the supplied Magnuson calibration. The result is harder acceleration, stronger mid-range pull, and the kind of forceful power increase serious Corvette Z06 owners expect when they roll into the throttle on the street or push the car harder on track.

Because the TVS2650R Magnum uses Eaton Twin Vortices Series rotor technology, boost response is immediate, and torque stays strong throughout the RPM range. For drivers who want their C7 Corvette Z06 to hit harder, pull longer, and carry the kind of street-and-track authority expected from a Katech-supported combination, this is the supercharger system that delivers.

726 HP • 690 LB-FT • +76 HP

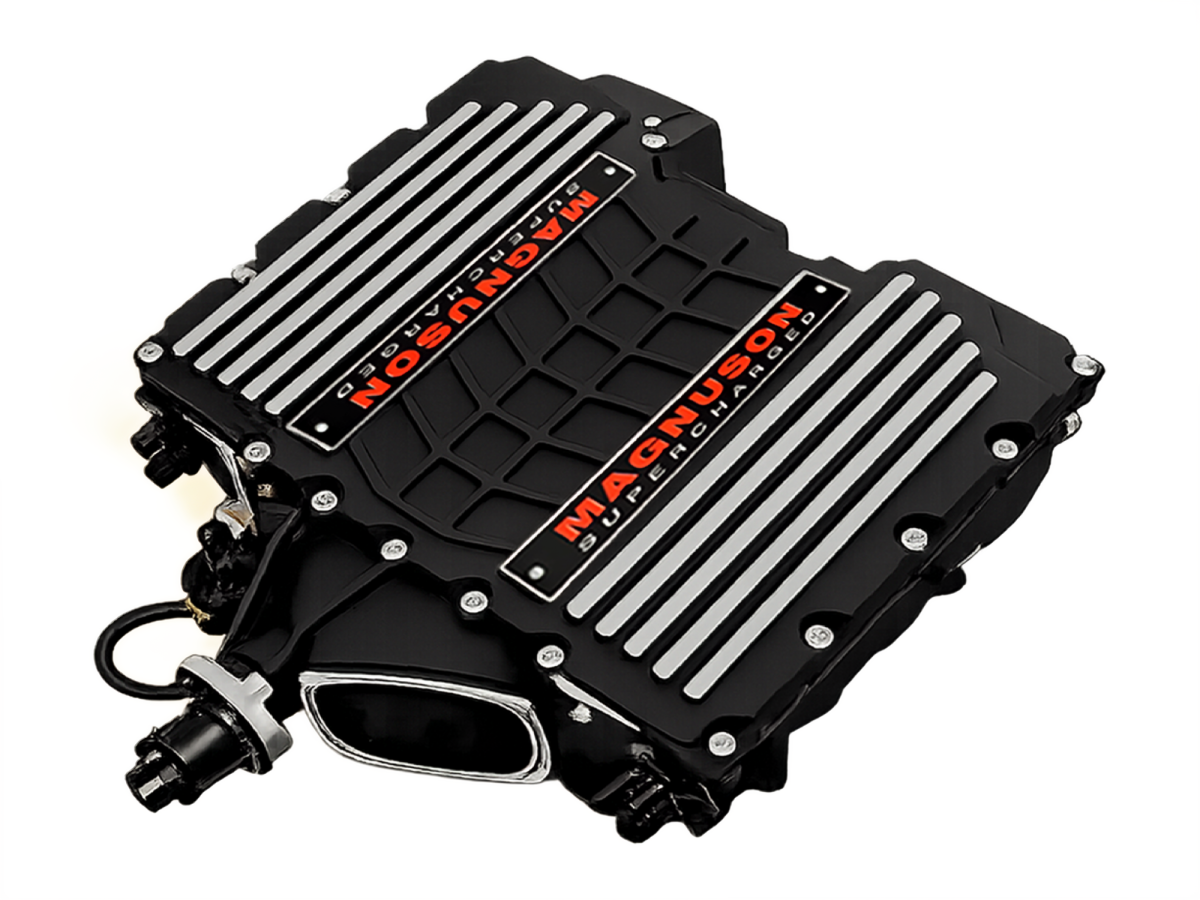

MAGNUSON TVS2650R Supercharger for Corvette Z06

Designed specifically for the GM LT4 platform, the MAGNUSON TVS2650R Magnum utilizes Eaton Twin Vortices Series rotor technology and optimized inlet airflow to deliver improved boost efficiency and consistent performance across the RPM range.

C7 Corvette Z06 Supercharger System Overview

• Engineered for 2015–2019 Chevrolet Corvette Z06 Models with the GM 6.2L LT4 Supercharged V8
• Complete Bolt-On Supercharger Upgrade Designed Specifically for the C7 Corvette Z06 Platform
• MAGNUSON TVS2650R Magnum Positive Displacement Supercharger System
• Designed to Increase Airflow and Performance Beyond the Factory LT4 Supercharger
• Wrinkle Black Supercharger Lid Finish
• 50-State Emissions Legal Under CARB EO D-488-61 When Installed with the Supplied Calibration

Key Features

• Approximately 726 Horsepower and 690 Lb-Ft of Torque at the Crank
• Estimated 76 Horsepower Increase Over Factory LT4 Output
• TVS2650R Magnum Supercharger Engineered for Increased Airflow and Performance
• Utilizes Eaton Twin Vortices Series High-Helix Four-Lobe Rotor Technology
• Dual Air-to-Water Charge-Air Coolers
• Patented Dynamic Flow Tuning Inlet Port Design
• Complete Bolt-On Supercharger Upgrade System
• Handheld Tuner with Magnuson Calibration Included
• Wrinkle Black Supercharger Lid Finish
• CARB Executive Order D-488-61 (50-State Emissions Legal)

What’s Included

• MAGNUSON TVS2650R Magnum Supercharger Assembly
• Integrated Intake Manifold
• Dual Air-to-Water Charge-Air Coolers
• Supercharger Drive System Components
• Intercooler System Hardware
• Installation Hardware and Required Components
• Handheld Tuner with Magnuson Calibration
• Detailed Installation Instructions

NOTE | Optional Limited Engine Warranty may be available to qualifying vehicles at additional cost.

Vehicle Fitment

• 2015–2019 Chevrolet Corvette Z06 with GM 6.2L LT4 Supercharged V8
• Detailed Model-Year Fitment Is Available in the Fitment Tab

Professional Installation Available at Katech Engineering

Want your C7 Corvette Z06 supercharger system installed by a team that understands high-horsepower GM performance at the highest level? Katech Engineering offers professional installation services for MAGNUSON supercharger systems and Corvette performance upgrades at our facility in Clinton Township, Michigan.

Located in the Detroit performance corridor, Katech has decades of experience working with Corvette and GM performance platforms. Our team installs forced-induction combinations for customers across the United States who want their supercharger system installed correctly for long-term reliability, drivability, and repeatable street and track performance.

From serious street builds to track-focused Corvette performance packages, Katech installation services bring championship-level engineering and attention to detail to every build.

Contact Katech for Installation Scheduling or Technical Assistance
(586) 791-4120
sales@katechengines.com

Frequently Asked Questions
