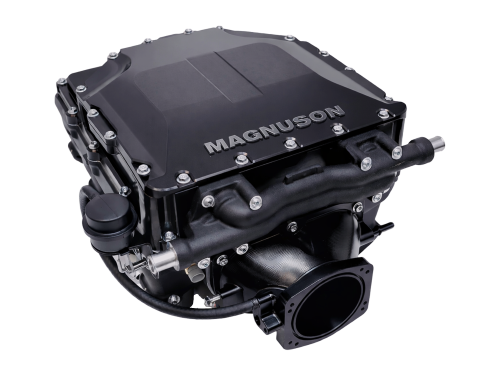

MAGNUSON TVS2650 Magnum C8 Corvette LT2 Supercharger System | 2020+

C8 Corvette Supercharger System

Race-Engineered Boost for the LT2-Powered C8 Corvette

The MAGNUSON TVS2650 Magnum C8 Corvette LT2 Supercharger System is built for C8 owners who expect more than factory performance. Engineered for 2020+ Chevrolet Corvette C8 models equipped with the GM 6.2L LT2 V8, this high-capacity positive displacement supercharger system delivers the kind of instant torque, immediate boost response, and aggressive acceleration that transforms the character of the car.

With approximately 700 horsepower and 675 lb-ft of torque at the crank at roughly 7 PSI of boost, the TVS2650 delivers an estimated 45% Increase in HORSEPOWER over stock LT2 output when installed with the supplied calibration. The result is harder launches, brutal mid-range pull, and the kind of forceful acceleration serious Corvette owners expect when they roll into the throttle on the street or push the car harder on track.

Because the TVS2650 is a positive displacement supercharger, boost builds immediately with engine speed. That means stronger low-end punch, instant throttle response, and relentless pull through the usable RPM range. For drivers who want their C8 Corvette to hit harder, respond faster, and carry the kind of street-and-track authority expected from a Katech-supported combination, this is the supercharger system that delivers.

700 HP • 675 LB-FT • ~7 PSI BOOST

C8 Corvette Supercharger System Overview

• Engineered for 2020+ Chevrolet Corvette C8 Models with the GM 6.2L LT2 V8
• Billet-Lid Supercharger Package for Coupe and Convertible Applications
• Complete Bolt-On Supercharger System Designed Specifically for the Mid-Engine C8 Corvette Platform
• MAGNUSON TVS2650 Magnum DI Positive Displacement Supercharger System
• Designed for Serious Street and Track Performance
• 50-State Emissions Legal Under CARB EO D-488-68 for 2020-2024 Models When Installed with the Supplied Calibration

Key Features

• Approximately 700 Horsepower and 675 Lb-Ft of Torque at ~7 PSI of Boost
• Estimated 45 Percent Increase in Horsepower Over Stock LT2 Output
• TVS2650 Magnum DI Supercharger Engineered for Immediate Boost Response
• Includes LT5 95 mm Throttle Body Breakout Box and Harness
• Custom Fabricated High-Flow High-Efficiency Intercooler Radiator
• 5-Gallon Intercooler System with Reservoir Tank, Service Fill Port, Pump, and Custom Molded Hoses for Optimum Efficiency
• Utilizes Eaton TVS Technology with High-Helix Four-Lobe Rotors for Maximum Efficiency Across the Speed Range
• High-Flow Durable Bar-and-Plate Charge Air Cooler Setup with 3/4-Inch Water Inlet and Outlet Ports to Reduce Coolant Restriction and Support Maximum Flow
• Vacuum Bypass System for Instantaneous Boost Response, Improved Part-Load Fuel Economy, and Rapid Supercharger Cooldown
• Patented Dynamic Flow Tuning Inlet Porting
• Housing Lid and Intercooler Geometry Optimized to Distribute Airflow Evenly Across the Intercooler
• Maintenance-Free Supercharger Technology with No External Supercharger Oil Cooler or Heaters Required for Extreme Climates
• Includes Calibration
• Optional Limited Engine Warranty Available to Qualifying Vehicles at Additional Cost

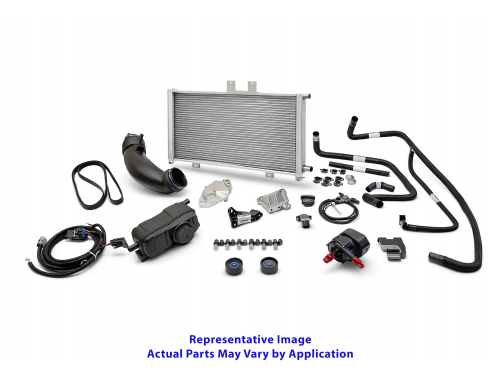

What’s Included

• MAGNUSON TVS2650 Supercharger System
• Billet Supercharger Lid
• LT5 95 mm Throttle Body
• Breakout Box and Harness
• Custom Fabricated High-Flow Intercooler Radiator
• 5-Gallon Intercooler System
• Reservoir Tank
• Service Fill Port
• Intercooler Pump
• Custom Molded Hoses
• Calibration (Does not include calibration device, ECM unlock, or credits.)
• Detailed Installation Instructions

NOTE | Optional Limited Engine Warranty may be available to qualifying vehicles at additional cost.

Vehicle Fitment

• 2020+ Chevrolet Corvette C8 with GM 6.2L LT2 V8 Engine
• Fits Coupe and Convertible Models
• Detailed Model-Year Fitment Is Available in the Fitment Tab

NOTE | Fitment with E-Ray May Require Additional Modifications; MAGNUSON Does Not Currently Offer Calibration for E-Ray Vehicles
