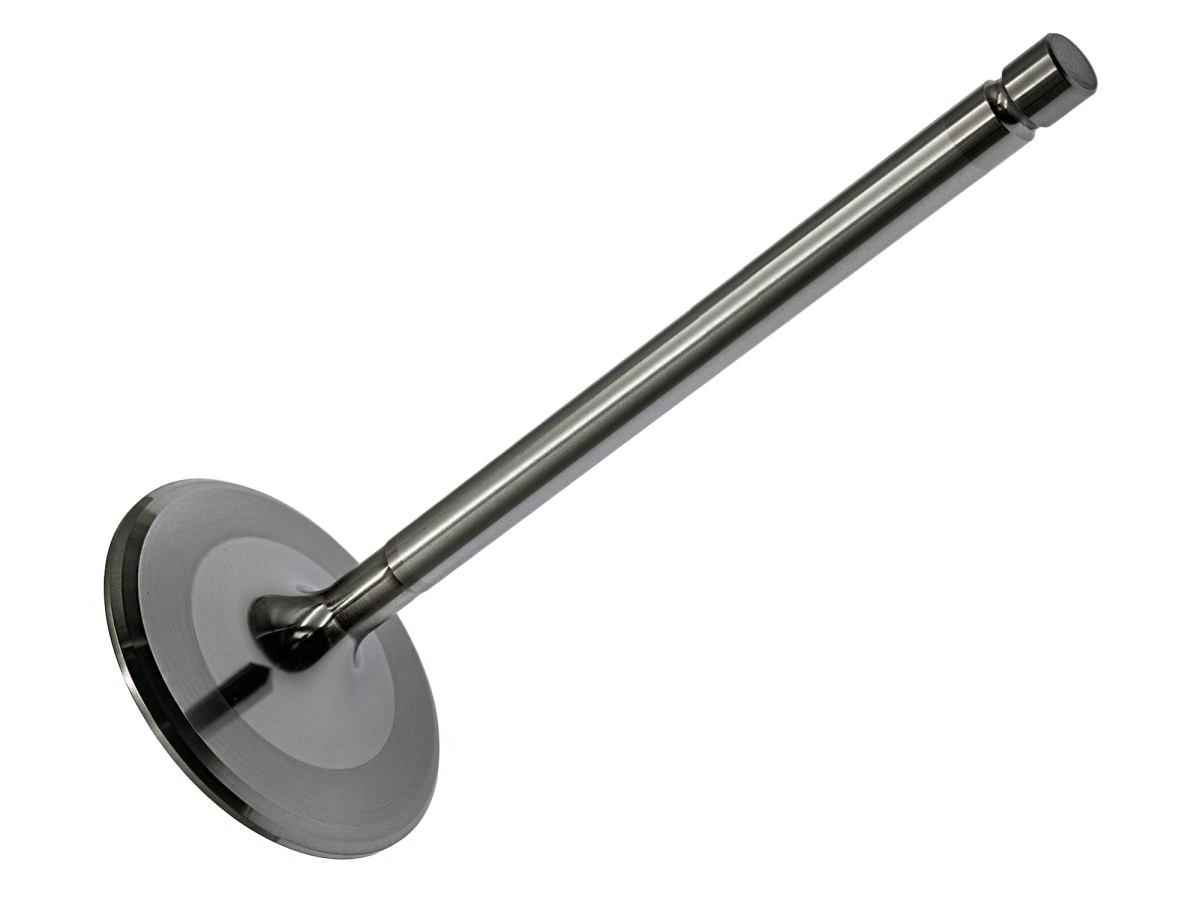

Katech Gen V LT1/LT4/LT5 2.130" Titanium Molybdenum Intake Valve Set

Katech Gen V LT1/LT4/LT5 2.130" Titanium Molybdenum Intake Valve Set

Matching Titanium Intake Valves for Compatible Gen V LT Cylinder Head Builds.

The Katech Gen V LT1/LT4/LT5 2.130" Titanium Molybdenum Intake Valve Set supplies matching valves for assembling or updating compatible LT1, LT4, and LT5 cylinder heads. Each valve features a Chrome Nitride-coated tip and a back-cut stem with molybdenum coating.

Application Requirements: Compatible lash caps are required with the non-steel valve tips. Katech recommends bronze valve guides.

Features & Benefits

• Matching Intake Valves for Compatible LT Cylinder Head Assemblies
• Lightweight Titanium Construction
• Chrome Nitride-Coated Tips
• Back-Cut Stems with Molybdenum Coating

Technical Specifications

• Product Type: Intake Valve Set
• Engine Applications: Compatible Gen V LT1, LT4, and LT5 Cylinder Heads
• Head Diameter: 2.130 Inches
• Overall Length: 5.200 Inches
• Material: Titanium
• Individual Valve Weight: 83.8 Grams
• Coatings: Chrome Nitride Tip Coating and Molybdenum Stem Coating
• Tip Configuration: Non-Steel

What's Included

• Eight Titanium Molybdenum Intake Valves

Lash caps, exhaust valves, valve guides, seals, springs, retainers, and valve locks are not included.

Engine Fitment

• GM Gen V LT1
• GM Gen V LT4
• GM Gen V LT5

Verify valve dimensions, cylinder head compatibility, and the supporting valvetrain configuration before ordering.

Installation & Compatibility Notes

• Use Compatible Lash Caps with the Non-Steel Valve Tips
• Bronze Valve Guides Recommended
• Verify Valve Dimensions and Valve Seat Compatibility
• Check Valve Guide Clearance for the Selected Valve Material and Coatings
• Confirm Valve Lock, Retainer, and Valve Seal Compatibility
• Check Spring Installed Height and Spring Pressures
• Verify Coil Bind and Retainer-to-Seal Clearance at Maximum Valve Lift
• Check Piston-to-Valve Clearance

Why Choose Katech

The Katech Gen V LT1/LT4/LT5 2.130" Titanium Molybdenum Intake Valve Set brings the intake valves together for a compatible cylinder head pair. Selecting the guides, lash caps, and spring components alongside the valves helps establish a coordinated assembly.

For intake valve, lash cap, and bronze guide compatibility questions, contact Katech Technical Sales at 586-791-4120.
