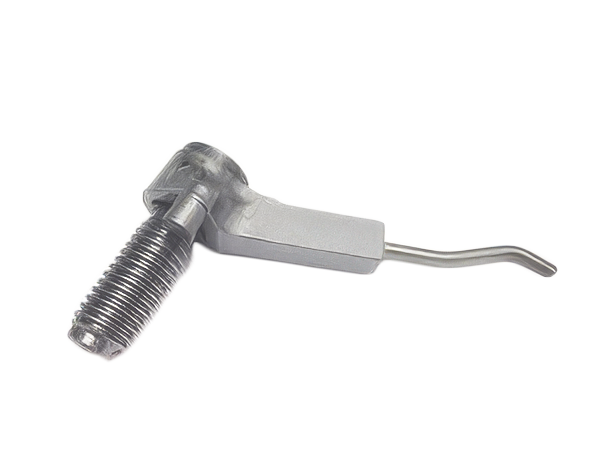

Katech RHS Block Replacement Piston Oil Squirter Nozzle

Katech RHS Block Replacement Piston Oil Squirter Nozzle

Individual Replacement Nozzle for RHS Block Applications with a 4.500-Inch Crankshaft Stroke.

The Katech RHS Block Replacement Piston Oil Squirter Nozzle is designed specifically for RHS engine block applications and a 4.500-inch crankshaft stroke. This listing provides an individual replacement nozzle for a compatible installation.

Sold Individually. Each purchase includes one Katech RHS Block Replacement Piston Oil Squirter Nozzle. Four nozzles are required for the engine application.

Installation requires liner clearancing on one bank as directed by the installation instructions. Piston skirt clearancing may also be required depending on piston design.

Features & Benefits

• Individual Replacement Piston Oil Squirter Nozzle
• Designed Specifically for RHS Engine Blocks
• Designed for a 4.500-Inch Crankshaft Stroke
• Supports Piston Oil Cooling in Compatible RHS Engine Builds
• Available Individually for Replacement Applications

Technical Specifications

• Component Type: Replacement Piston Oil Squirter Nozzle
• Block Application: RHS Engine Blocks Only
• Designed Crankshaft Stroke: 4.500 Inches
• Quantity Supplied: One Nozzle; Sold Individually
• Quantity Required: Four Nozzles per Engine Application
• Liner Clearance: Clearancing Required on One Bank per Installation Instructions
• Piston Clearance: Piston Skirt Clearancing May Be Required Depending on Piston Design

What's Included

• One Katech RHS Block Replacement Piston Oil Squirter Nozzle.

Engine & Block Fitment

• Compatible RHS Engine Block Applications

RHS Blocks Only: The Katech RHS Block Replacement Piston Oil Squirter Nozzle is not intended for stock GM LS or LT engine blocks.

Verify the block configuration, crankshaft stroke, piston design, and existing nozzle arrangement before selecting a replacement.

Important Installation Notes

• Follow the RHS-Specific Nozzle Installation Instructions
• Complete the Required Liner Clearancing on One Bank as Directed
• Verify That the Replacement Matches the Existing Nozzle Installation
• Check Nozzle, Piston Skirt, and Rotating Assembly Clearance Throughout the Complete Engine Cycle
• Piston Skirt Clearancing May Be Required Depending on Piston Design
• Four Nozzles Are Required for the Engine Application
• Follow the Specified Nozzle Positioning and Fastener Tightening Procedure

Why Choose Katech

RHS engine blocks require a piston oil squirter configuration suited to their specific layout. The Katech RHS Block Replacement Piston Oil Squirter Nozzle provides an individual service option for these applications, with defined stroke and clearancing requirements to guide selection and installation.

For replacement selection and installation questions, contact Katech Technical Sales at 586-791-4120.
