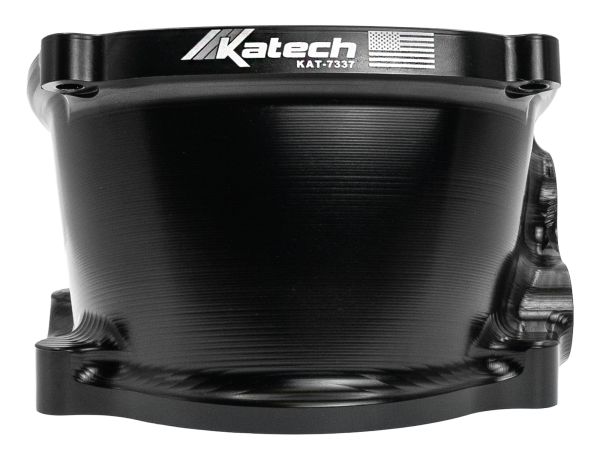

Katech 112MM Billet Supercharger Snout for Magnuson TVS2300 & TVS2650 Superchargers

Katech 112MM Billet Supercharger Snout for Magnuson TVS2300 & TVS2650 Superchargers

6061-T6 BILLET ALUMINUM · 112MM THROTTLE BODY COMPATIBILITY · THREE -6 AN ORB ACCESSORY PORTS

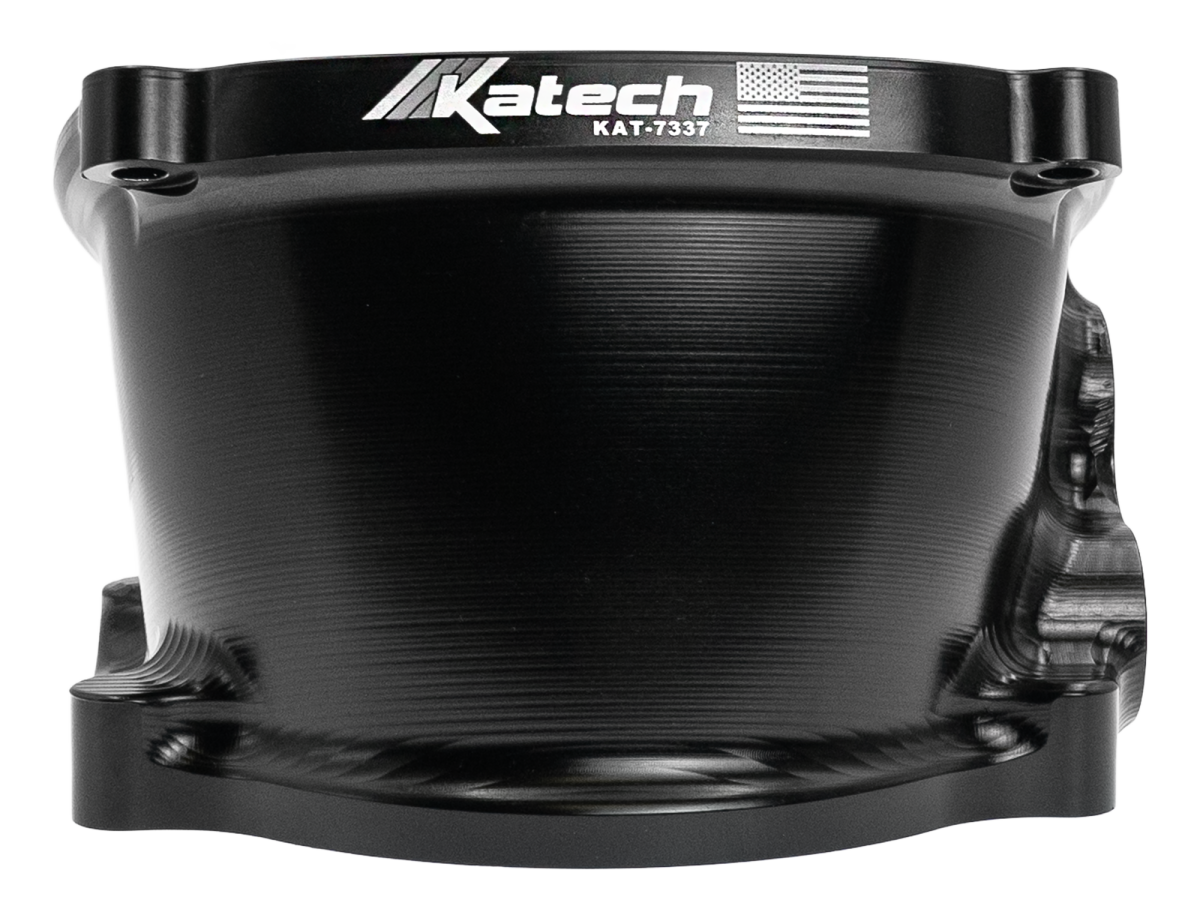

The Katech 112MM Billet Supercharger Snout is designed for compatible Magnuson TVS2300 and TVS2650 Supercharger Systems on Chevrolet C7 Corvette applications and compatible Magnuson Supercharger Systems on Chevrolet Gen VI Camaro applications.

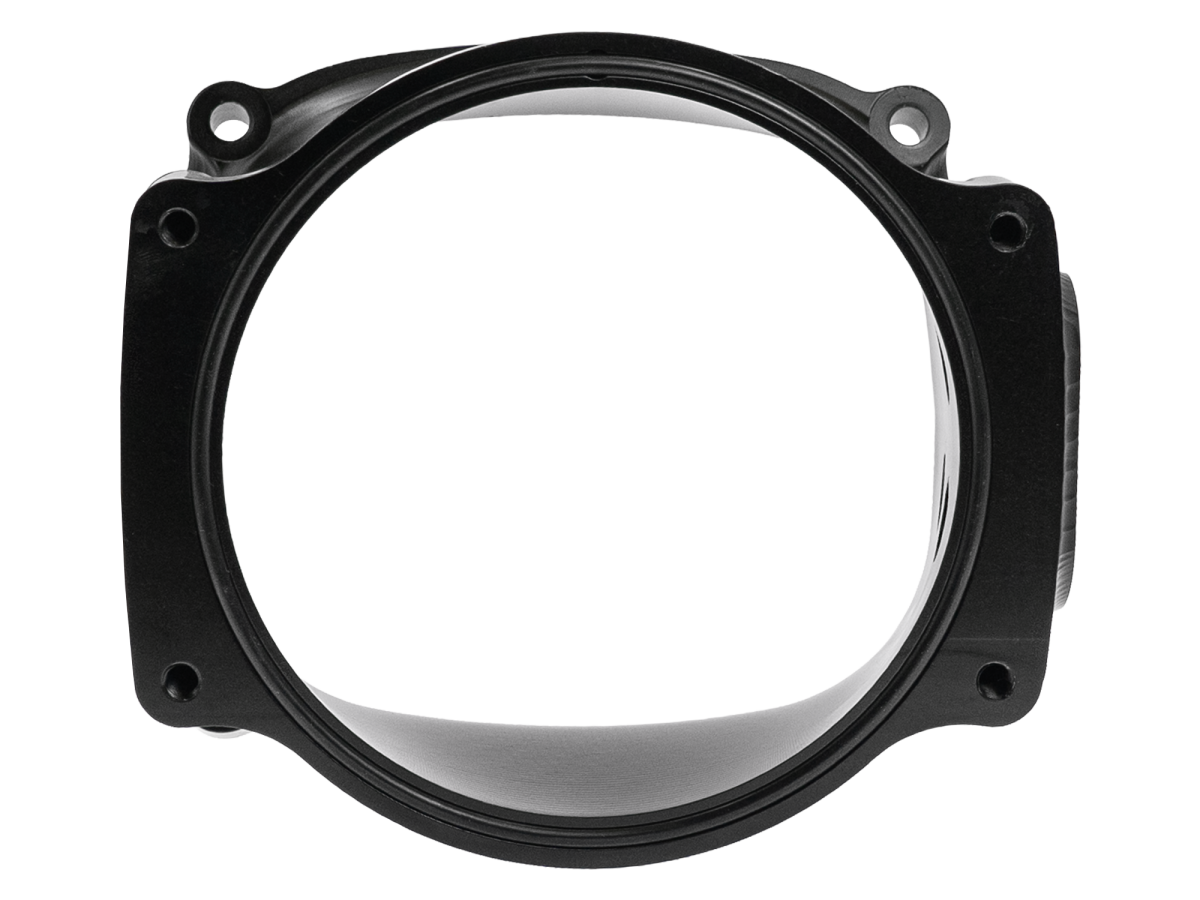

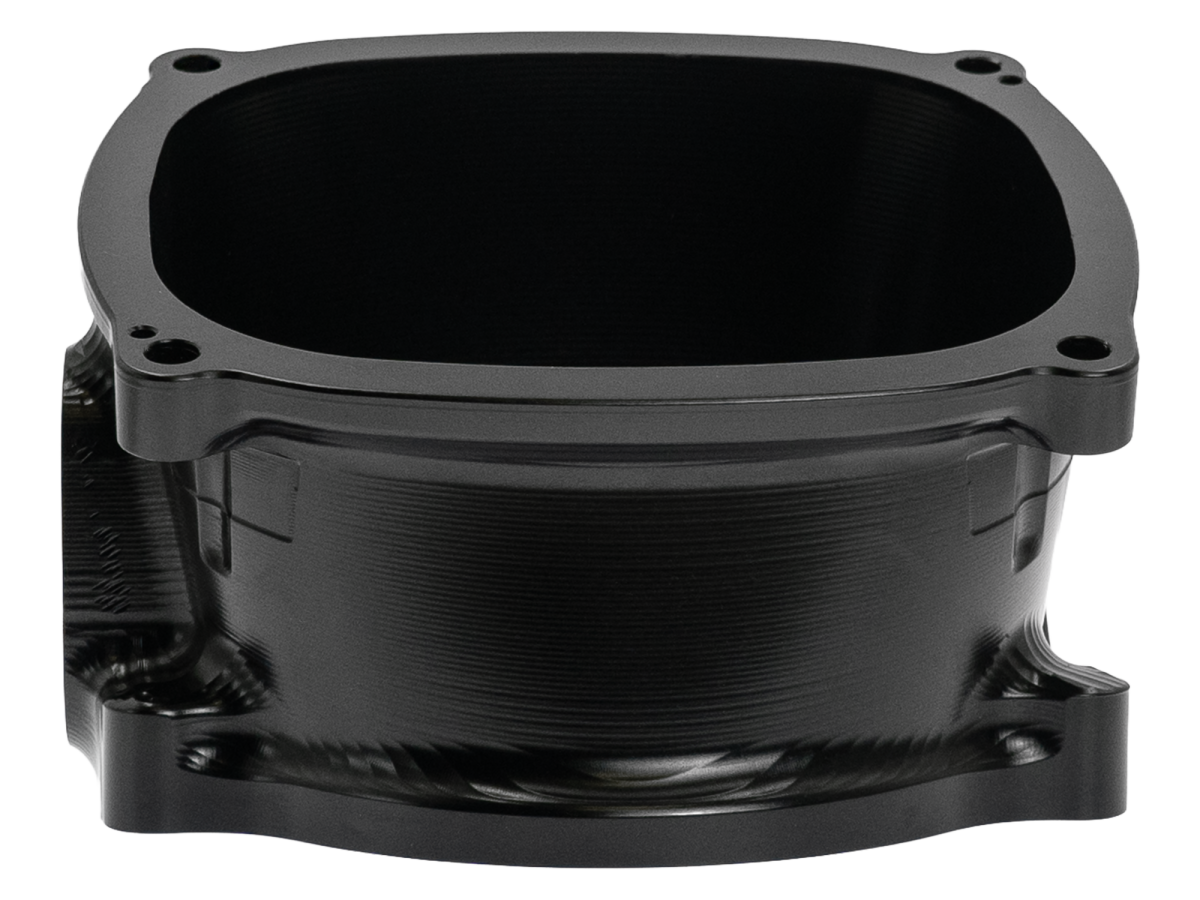

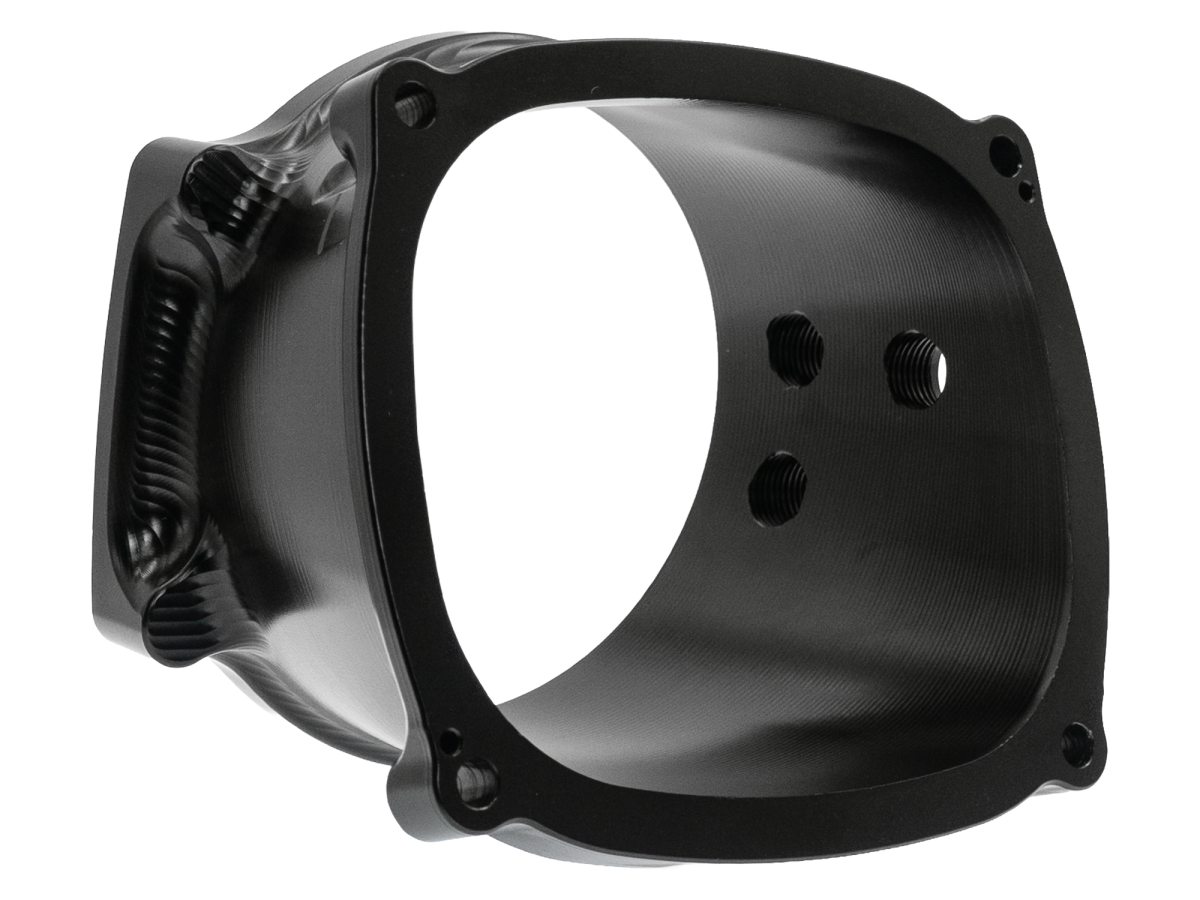

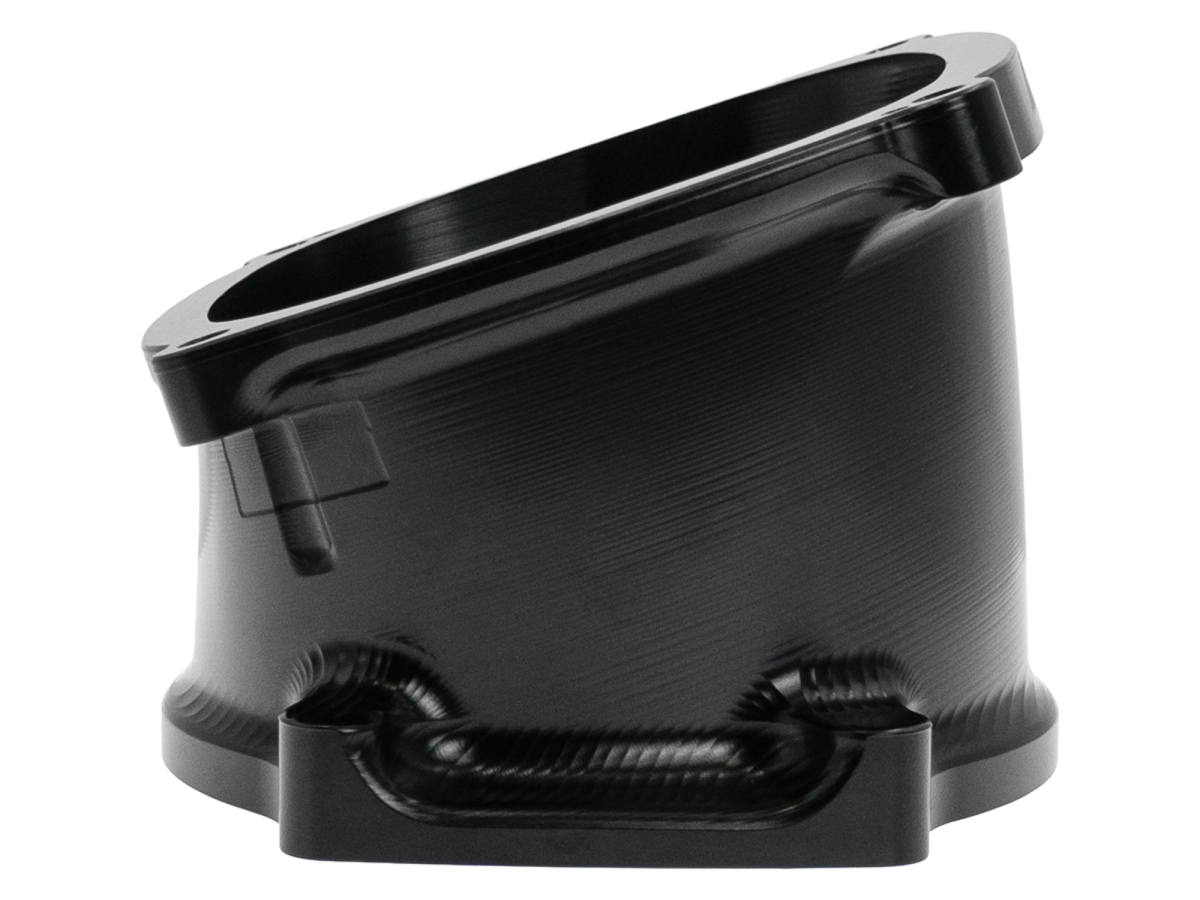

Precision-machined from 6061-T6 billet aluminum and finished with a durable black anodized coating, the snout features an inlet opening 18% larger than a 103MM Throttle Body and 66% larger than the factory LT 87MM Throttle Body. Three machined -6 AN ORB accessory ports provide connection points for compatible PCV, EVAP, and monitoring components.

Features & Benefits

• Precision-Machined 6061-T6 Billet Aluminum Construction
• Durable Black Anodized Finish
• Designed for Compatible Magnuson TVS2300 and TVS2650 Supercharger Systems
• Compatible with Katech and Nick Williams 112MM Throttle Bodies
• Improves Airflow into the Supercharger Rotor Pack
• Features an Inlet Opening 18% Larger than a 103MM Throttle Body
• Features an Inlet Opening 66% Larger than the Factory LT 87MM Throttle Body

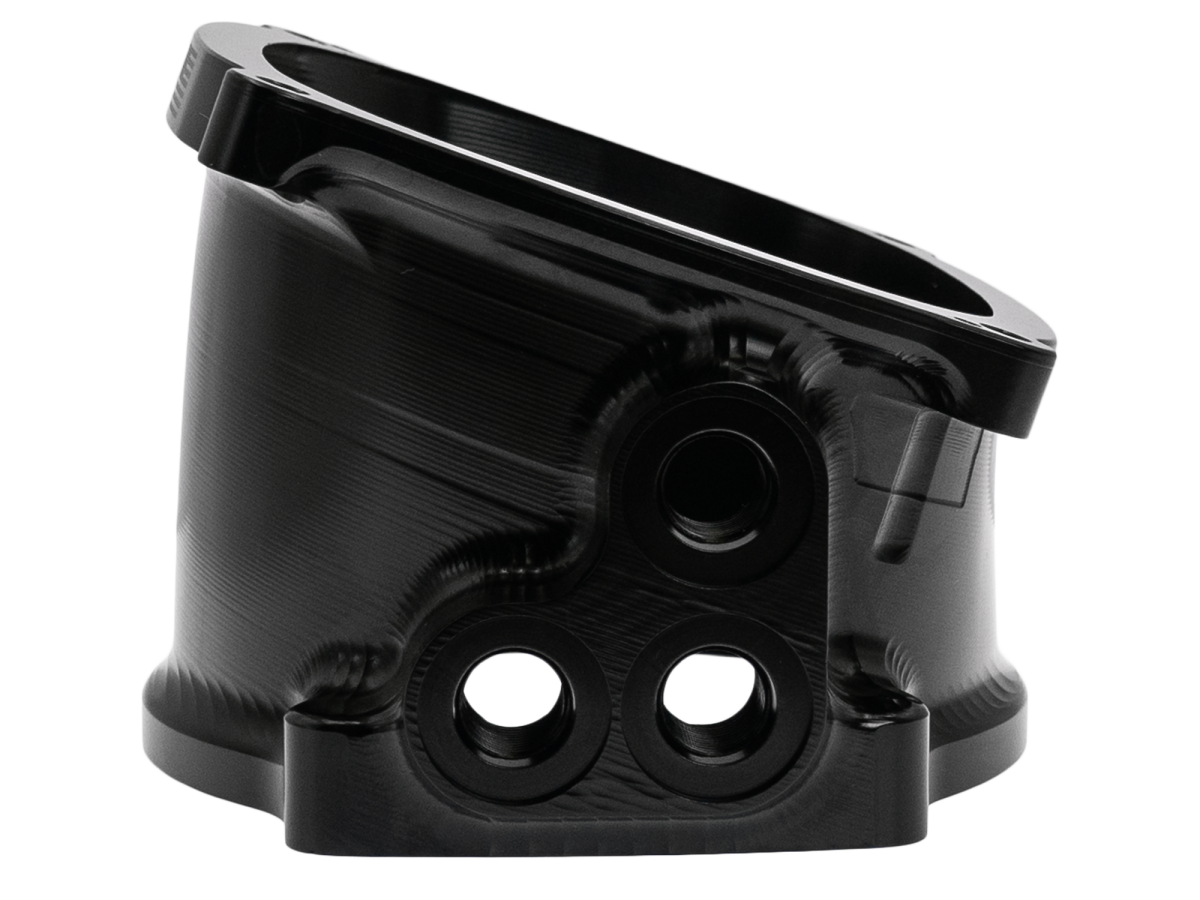

• Three Machined -6 AN ORB Accessory Ports
• Supports Compatible PCV, EVAP, and Monitoring Connections
• Includes O-Ring
• Engineered, Machined, and Manufactured by Katech Engineering in Clinton Township, Michigan, USA!

Specifications

• Product Type: Supercharger Snout
• Material: 6061-T6 Billet Aluminum
• Finish: Black Anodized
• Throttle Body Compatibility: Katech 112MM and Nick Williams 112MM Throttle Bodies
• Supercharger Compatibility: Magnuson TVS2300 and TVS2650
• Accessory Ports: Three -6 AN ORB Ports
• O-Ring: Included

Vehicle & Engine Fitment

Chevrolet

• 2014–2019 Chevrolet C7 Corvette Applications Equipped with a Compatible Magnuson TVS2300 or TVS2650 Supercharger System
• 2016–2024 Chevrolet Gen VI Camaro Applications Equipped with a Compatible Magnuson Supercharger System

Engine Applications

• Compatible GM Gen V LT Engine Applications Using a Supported Magnuson TVS2300 or TVS2650 Supercharger System
• Applications Using Katech or Nick Williams 112MM Throttle Bodies

Important Fitment Notes

• Compatible with Katech LT 112MM Throttle Bodies and Nick Williams 112MM Throttle Bodies
• Relocation of the EVAP Solenoid and MAP Sensor Is Required
• Use Katech EVAP Solenoid & MAP Sensor Relocation Block KAT-7403
• Verify Vehicle, Supercharger Model, Inlet Configuration, Throttle Body, and Sensor Compatibility Before Ordering
• Does Not Fit the Factory GM LT4 Supercharger
• Magnuson Supercharger-to-Snout Mounting Bolts Are Reused and Are Not Included
• Throttle Body Mounting Bolts are Included with the Katech 112MM Throttle Bodies

What’s Included

• One Katech 112MM Billet Supercharger Snout with O-Ring

Why Choose Katech?

Since 1977, Katech has engineered championship-winning engines and precision performance components for professional motorsports, OEM development programs, engine builders, and performance enthusiasts.

The Katech 112MM Billet Supercharger Snout combines precision-machined 6061-T6 billet aluminum construction, improved airflow into the supercharger rotor pack, and integrated accessory ports to provide a purpose-built solution for compatible Magnuson Supercharger Systems using a Katech or Nick Williams 112MM Throttle Body.
