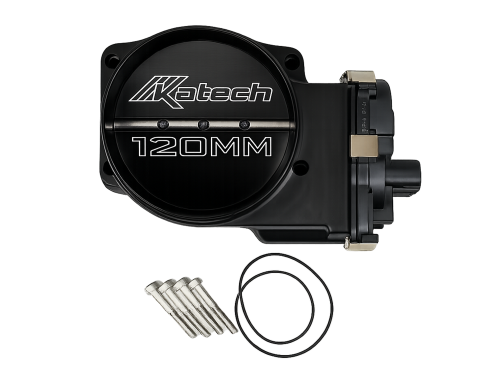

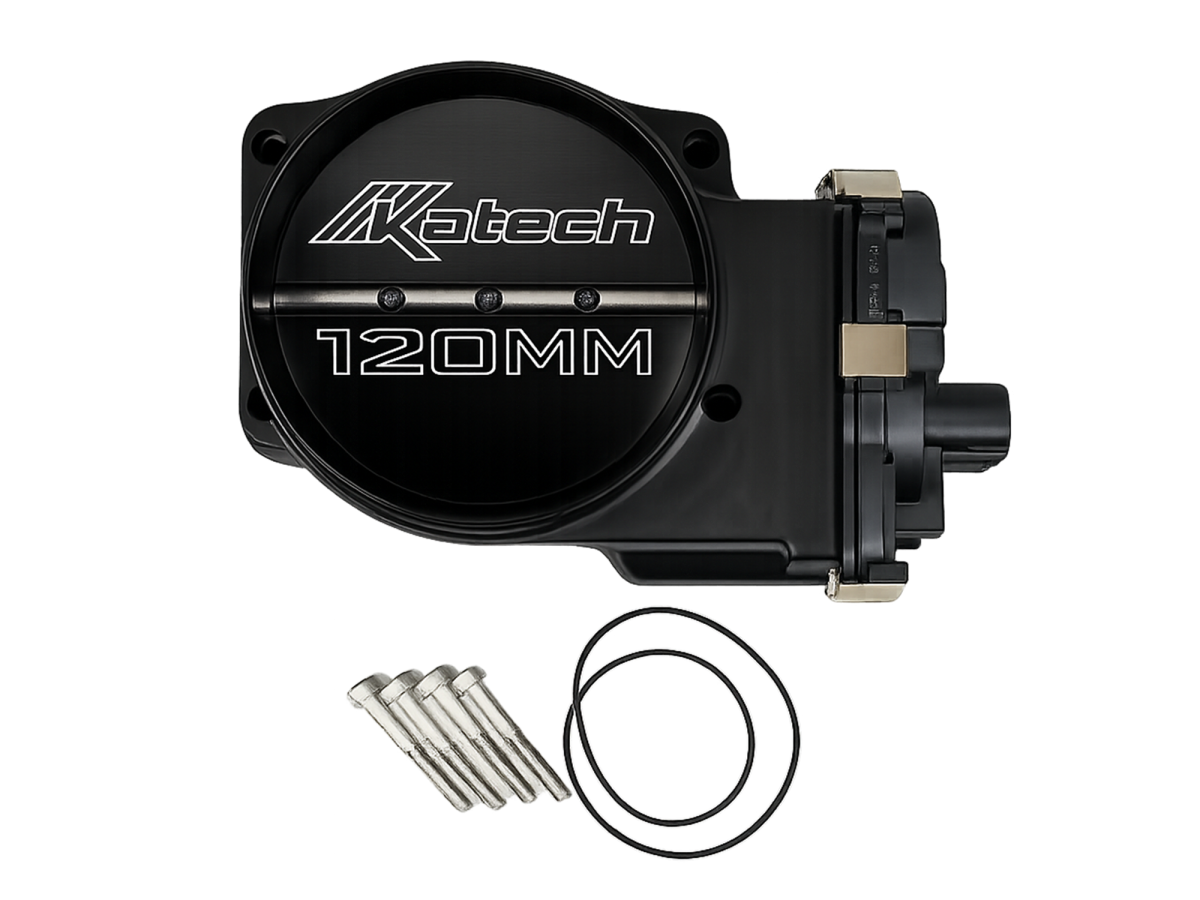

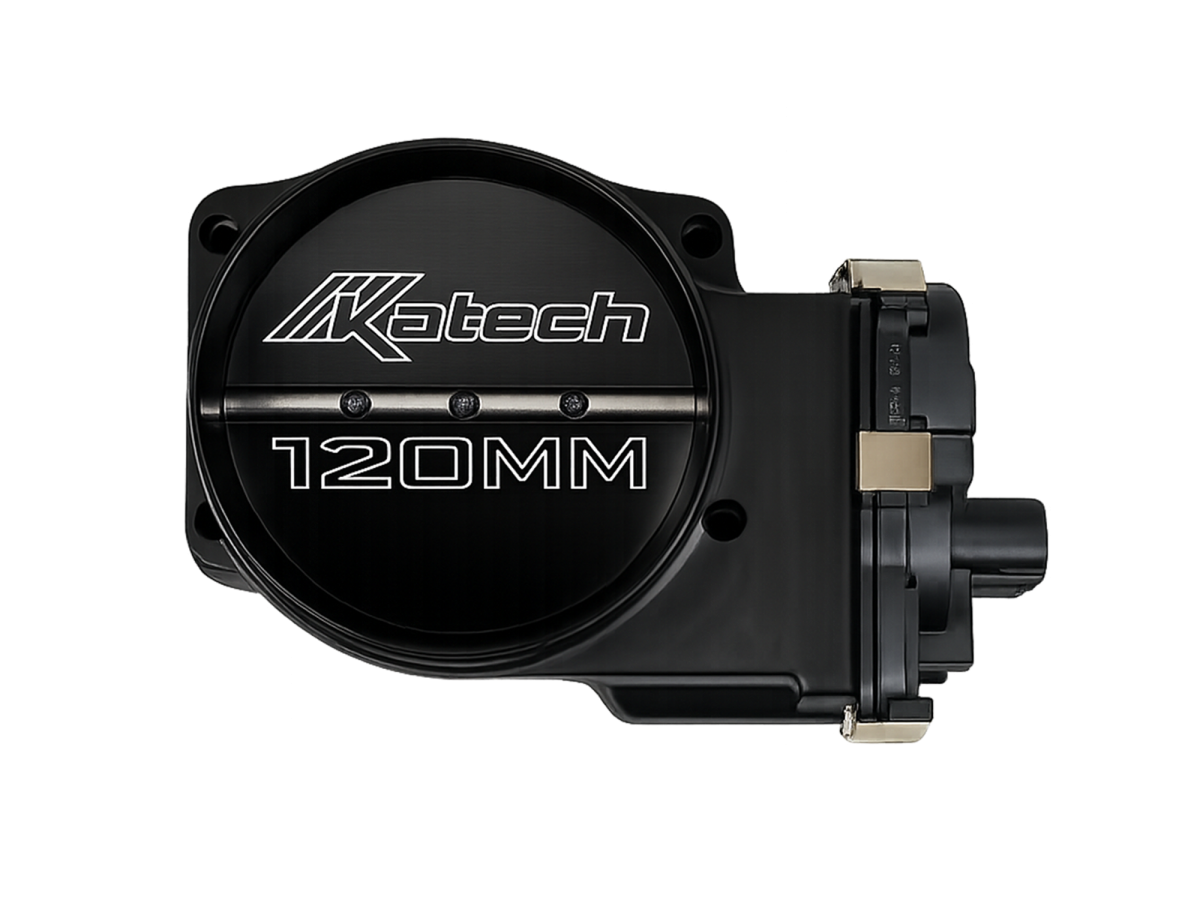

Katech LT 120MM Black Anodized Billet Throttle Body

Katech LT 120MM Black Anodized Billet Throttle Body

The Katech LT 120MM Black Anodized Billet Throttle Body is engineered for LT-based performance applications using supercharger or inlet systems designed to accept a 120mm throttle body. CNC-machined from billet aluminum and equipped with GM electronic throttle control components, this throttle body is built to support increased airflow capacity in properly matched high-performance combinations.

Featuring a 120mm blade, a precision 5-axis CNC-milled inlet, and a durable black anodized finish, this throttle body is designed for supercharged applications where larger inlet area and proper system matching are critical. It is not compatible with the stock LT1 intake manifold or the stock LT4 supercharger. Engine calibration is required.

Key Features

• • Billet Aluminum Throttle Body Construction
  • Black Anodized Finish
  • 120mm Throttle Blade
  • 5-Axis CNC-Milled Inlet
  • GM Electronic Drive-By-Wire Electronics
  • Bolt Pattern: 126mm X 70mm (4.961" x 2.756")

Fitment

For use with:
LT-based applications, including C7 Corvettes and Gen 6 Camaros, equipped with supercharger systems that accept a 120mm throttle body.

Will not work with Stock LT1 intake manifold or Stock LT4 supercharger.

REQUIRES Engine calibration

Important Notes

This throttle body is intended for properly matched combinations where the intake tract, supercharger inlet, and calibration strategy are designed to support a 120mm throttle body. Performance results depend on the complete induction system and tuning combination.

Why Choose Katech Engineering

Since 1977, Katech Engineering has built race-proven, high-performance components for demanding street and motorsports applications. The Katech LT 120MM Black Anodized Billet Throttle Body reflects that same focus on precision machining, airflow performance, and application-specific engineering.
