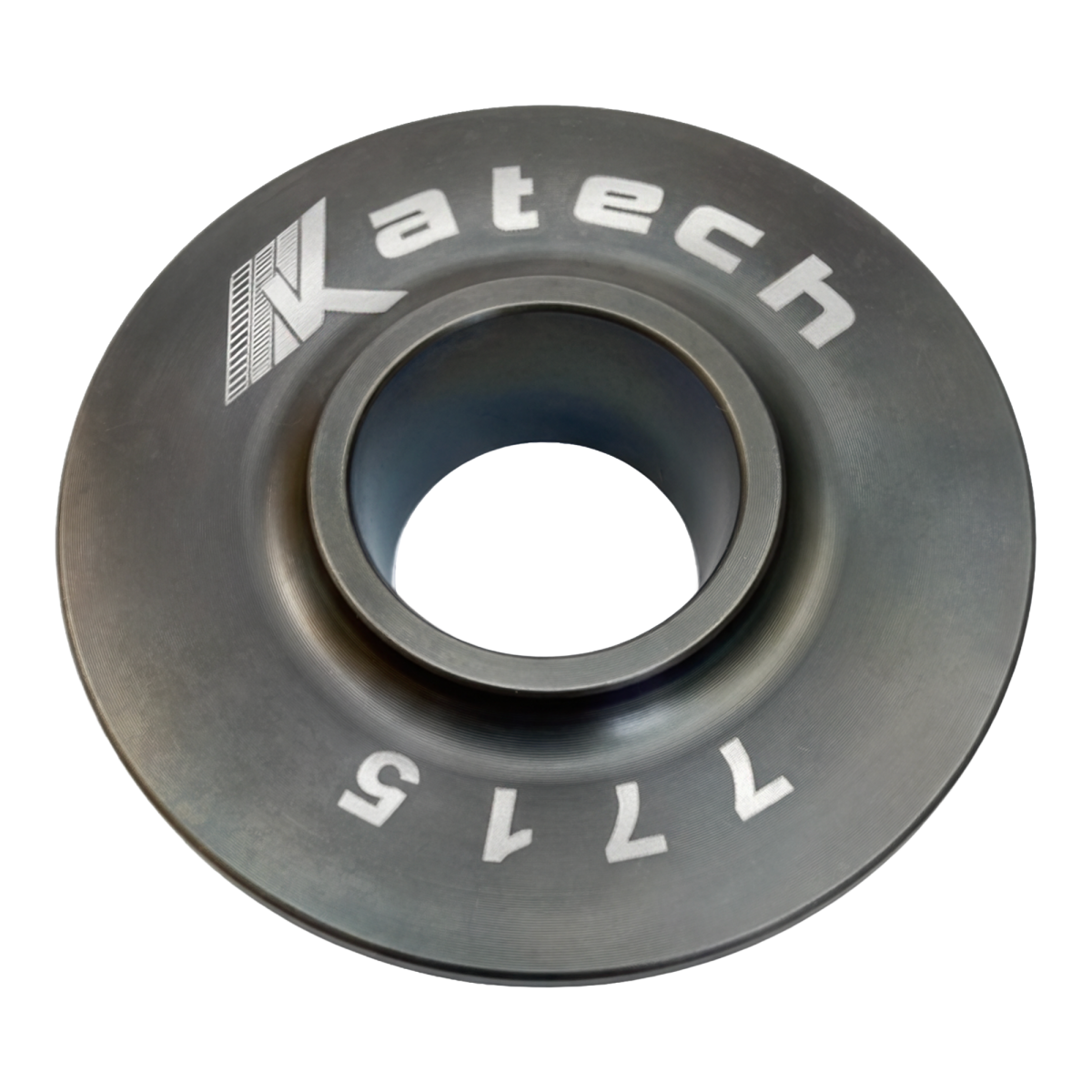

Katech LS/LT Extreme Duty H13 Tool Steel Dual Valve Spring Replacement Retainer

Katech LS/LT Extreme Duty H13 Tool Steel Dual Valve Spring Replacement Retainer

Individual Hardened H13 Tool Steel Retainer for Compatible PSI Dual Valve Spring Packages.

The Katech LS/LT Extreme Duty H13 Tool Steel Dual Valve Spring Replacement Retainer is engineered and manufactured by Katech Engineering in Clinton Township, Michigan, USA. Designed for PSI-LS1512 and PSI-LS1513 dual valve springs in compatible LS, LT1, and L83 valvetrain packages, its hardened H13 tool steel construction provides increased long-term wear resistance compared with titanium retainers in evaluated Katech camshaft packages.

Sold Individually. Each purchase includes one Katech LS/LT Extreme Duty H13 Tool Steel Dual Valve Spring Replacement Retainer.

Katech developed this retainer on its Spintron valvetrain dynamics test cell for demanding racing conditions. Steel valve springs can wear into titanium retainer contact surfaces over time; this H13 tool steel design provides an alternative where spring-contact wear and service life are important considerations.

Features & Benefits

• Individual Replacement Retainer for Compatible Dual Valve Spring Packages
• Hardened H13 Tool Steel Construction
• Designed for PSI-LS1512 and PSI-LS1513 Dual Valve Springs
• Developed Using Katech's Spintron Valvetrain Dynamics Test Cell
• Increased Long-Term Wear Resistance Compared with Titanium Retainers in Evaluated Katech Packages
• 13.8-Gram Weight per Retainer
• Sold Individually for Replacement Applications
• Proudly Engineered and Manufactured by Katech Engineering in Clinton Township, Michigan, USA

Technical Specifications

• Product Type: Replacement Dual Valve Spring Retainer
• Quantity: One Retainer; Sold Individually
• Material: Hardened H13 Tool Steel
• Compatible Valve Springs: PSI-LS1512 and PSI-LS1513 Dual Springs
• Retainer Weight: 13.8 Grams
• Engine Applications: Compatible LS, LT1, and L83 Packages

What's Included

• One Replacement Retainer

Retainer Weight Comparison

• Referenced OEM Retainer: 11.4 Grams
• Katech H13 Tool Steel Retainer: 13.8 Grams

Valve Spring Compatibility

• PSI-LS1512 Dual Valve Springs
• PSI-LS1513 Dual Valve Springs

For replacement use, confirm that the retainer matches the existing valvetrain package. Verify valve stem, valve lock, spring, and installed-height compatibility before installation.

Important Installation Notes

• Confirm That the Replacement Matches the Existing Retainer Configuration
• Use with the Specified Compatible Dual Valve Springs
• Inspect the Valve Spring and Locks for Wear or Damage During Replacement
• Verify Valve Lock and Valve Stem Compatibility
• Check Spring Installed Height and Spring Pressures
• Verify Coil Bind and Retainer-to-Seal Clearance at Maximum Valve Lift
• Match the Complete Valvetrain to the Camshaft and Intended Operating Range
• Inspect Retainers and Related Components at Appropriate Service Intervals

Why Choose Katech

The Katech LS/LT Extreme Duty H13 Tool Steel Dual Valve Spring Replacement Retainer allows an individual component to be purchased for servicing a compatible valvetrain package. Its development focused on the balance between retainer weight and spring-contact wear resistance under demanding racing conditions.

Katech's Spintron testing and Daytona course simulation evaluated the design as part of complete valvetrain combinations, helping guide its application alongside the specified PSI dual springs.

For replacement selection and valvetrain compatibility questions, contact Katech Technical Sales at 586-791-4120.
