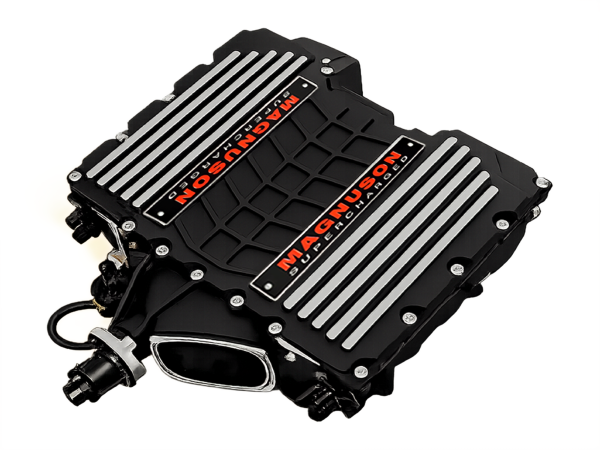

MAGNUSON TVS2650R Magnum Camaro LT1 Supercharger System

MAGNUSON TVS2650R Magnum Camaro LT1 Supercharger System

Race-Engineered Boost for the LT1-Powered Camaro

The MAGNUSON TVS2650R Magnum Camaro LT1 Supercharger System is built for Camaro owners who expect more than factory performance. Engineered specifically for 2016–2024 Chevrolet Camaro models equipped with the GM 6.2L LT1 V8 engine, this high-capacity positive displacement supercharger system delivers a direct bolt-on path to significantly increased horsepower and torque while maintaining OEM-style integration and everyday drivability.

With approximately 588 horsepower and 600 lb-ft of torque at the crank at approximately 8 PSI of boost, the TVS2650R Magnum delivers an estimated 28% Increase in HORSEPOWER over factory LT1 Camaro output when installed with the supplied Magnuson calibration. The result is stronger launches, harder mid-range pull, and the kind of aggressive acceleration serious Camaro enthusiasts expect when they roll into the throttle on the street or push the car harder in high-performance driving.

Because the TVS2650R Magnum utilizes Eaton Twin Vortices Series rotor technology, boost response is immediate and airflow efficiency remains strong across the RPM range. For drivers who want their Camaro to hit harder, respond faster, and carry the kind of street-and-track authority expected from a Katech-supported combination, this is the supercharger system that delivers.

588 HP • 600 LB-FT • ~8 PSI BOOST

Camaro LT1 Supercharger System Overview

• Engineered for 2016–2024 Chevrolet Camaro Models with the GM 6.2L LT1 V8
• MAGNUSON TVS2650R Magnum Positive Displacement Supercharger System
• Complete Bolt-On Supercharger Upgrade Designed for the Sixth-Generation Camaro LT1 Platform
• Designed to Increase Airflow and Performance Beyond Naturally Aspirated LT1 Output
• Dual Air-to-Water Charge-Air Coolers
• Wrinkle Black Supercharger Lid Finish
• 50-State Emissions Legal Under CARB EO D-488-62 When Installed with the Supplied Calibration

Key Features

• Approximately 588 Horsepower and 600 Lb-Ft of Torque at Approximately 8 PSI of Boost
• Estimated 28 Percent Increase in Horsepower Over Factory LT1 Camaro Output
• TVS2650R Magnum Supercharger Engineered for Increased Airflow and Engine Output
• Eaton Twin Vortices Series High-Helix Four-Lobe Rotor Technology
• Dual Air-to-Water Charge-Air Coolers
• Dynamic Flow Tuning Inlet Port Design
• Direct Bolt-On Installation with OEM Fit and No Modifications
• Handheld Tuner with Magnuson Calibration Included
• Wrinkle Black Supercharger Lid Finish
• CARB Executive Order D-488-62 (50-State Emissions Legal)

What’s Included

• MAGNUSON TVS2650R Magnum Supercharger Assembly
• Integrated Intake Manifold
• Dual Air-to-Water Charge-Air Coolers
• Supercharger Drive System Components
• Intercooler System Hardware
• Installation Hardware and Required Components
• Handheld Tuner with Magnuson Calibration
• Detailed Installation Instructions

NOTE | Optional Limited Engine Warranty may be available to qualifying vehicles at additional cost.

Vehicle Fitment

• 2016–2024 Chevrolet Camaro with GM 6.2L LT1 V8 Engine
• Detailed Model-Year Fitment Is Available in the Fitment Tab

NOTE | 2023–2024 Model Year Vehicles May Experience a Short Delay While the Calibration File Is Provided. To Avoid Unnecessary Delays, Always Begin the ECM Calibration Process First.

Professional Installation Available at Katech Engineering

Want your Camaro supercharger system installed by a team that understands high-horsepower GM performance at the highest level? Katech Engineering offers professional installation services for MAGNUSON supercharger systems and performance upgrades at our facility in Clinton Township, Michigan.

Located in the Detroit performance corridor, Katech has decades of experience working with GM LS and LT engine platforms. Our team installs forced-induction combinations for customers across the United States who want their supercharger system installed correctly for long-term reliability, drivability, and repeatable street and track performance.

From serious street builds to track-focused performance combinations, Katech installation services bring championship-level engineering and attention to detail to every build.

Contact Katech for Installation Scheduling or Technical Assistance
(586) 791-4120
sales@katechengines.com
