Katech Gen 6 Camaro ZL1 Remote Fuel Filter Kit

Katech Gen 6 Camaro ZL1 Remote Fuel Filter Kit

Remote 10-Micron Fuel Filtration with Factory Fuel Line Connections and Optional FlexFuel Sensor Integration

The Katech Gen 6 Camaro ZL1 Remote Fuel Filter Kit adds a remotely mounted, 10-micron inline fuel filter to the low-side fuel supply on compatible Chevrolet Camaro ZL1 applications. Designed for use with the Katech Gen 6 Camaro / CTS-V3 High-Performance Low-Side Dual Fuel Pump Module, the kit connects the OEM fuel feed line to the feed line serving the factory-position high-pressure fuel pump.

The filter mounts to the firewall behind the supercharger using a vehicle-specific bracket and existing mounting points. No drilling is required. A preassembled, E85-rated PTFE fuel line completes the connection from the filter to the high-pressure fuel pump feed line.

The Katech Gen 6 Camaro ZL1 Remote Fuel Filter Kit includes connection fittings for installation with or without a FlexFuel sensor. The sensor is not included.

Features & Benefits

• 10-Micron Filtration: Included DeatschWerks Inline Fuel Filter
• Remote Mounting: Positions the Filter on the Firewall Behind the Supercharger
• Vehicle-Specific Bracket: Uses Existing Mounting Points Without Drilling
• Factory Fuel Line Integration: Connects the OEM Fuel Feed Line to the High-Pressure Fuel Pump Feed Line
• FlexFuel Sensor Compatibility: Includes Connection Fittings for Installation with or Without a Sensor
• E85-Rated Fuel Line: Preassembled PTFE Line with Installed Fittings
• Dual Fuel Pump Application: Designed for Use with the Katech Gen 6 Camaro / CTS-V3 High-Performance Low-Side Dual Fuel Pump Module

Technical Specifications

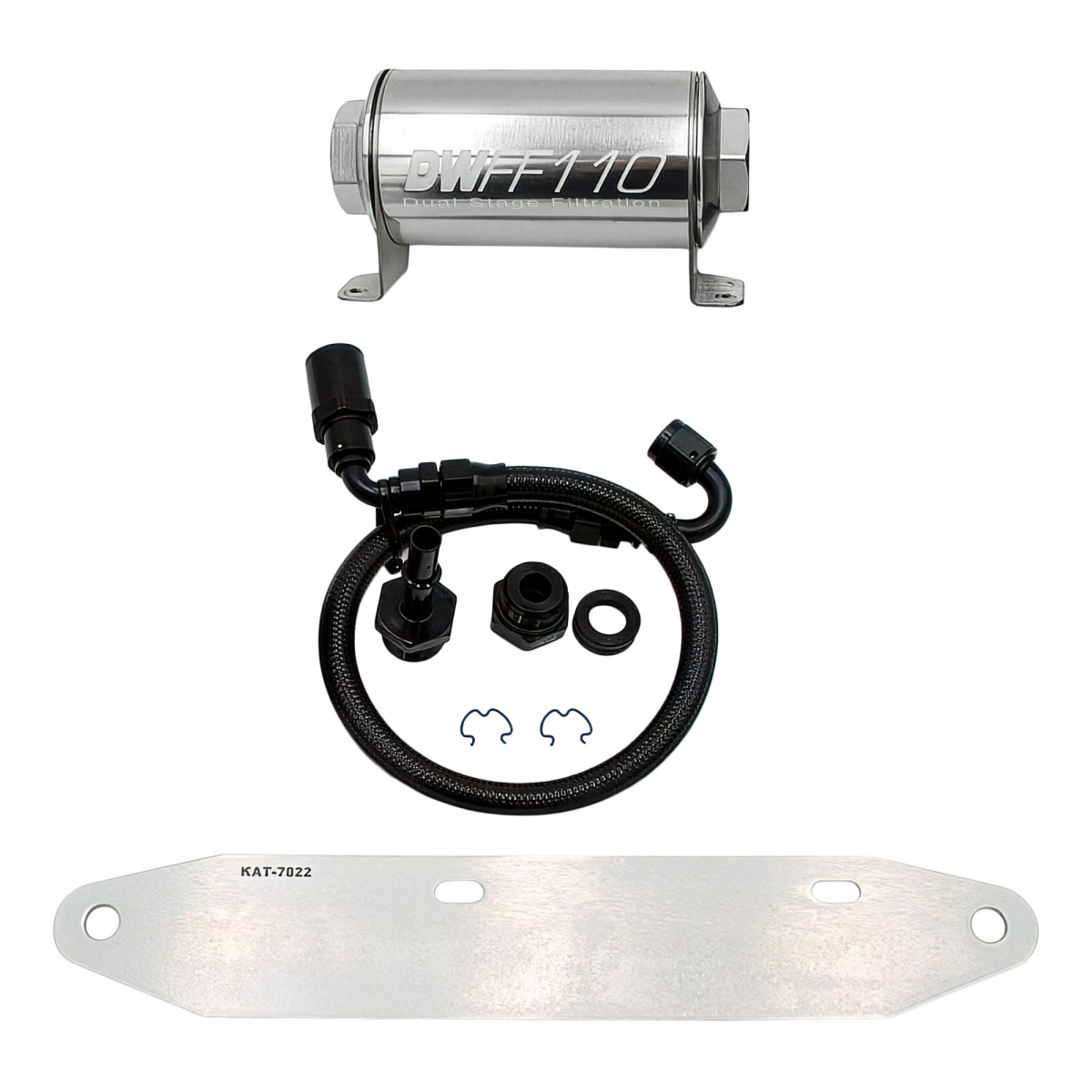

What's Included

• DeatschWerks 10-Micron Inline Fuel Filter
• Gen 6 Camaro ZL1 Fuel Filter Mounting Bracket
• Filter-to-Bracket Mounting Hardware
• Quick-Disconnect Adapter Fittings for Installation with or Without a FlexFuel Sensor
• Preassembled, E85-Rated PTFE Fuel Line

Sold Separately: FlexFuel sensor and fuel pump module.

Vehicle Fitment

Chevrolet:

• 2017–2024 Camaro ZL1: Gen 6 Platform with Factory Fuel Lines and Factory-Position High-Pressure Fuel Pump

The Katech Gen 6 Camaro ZL1 Remote Fuel Filter Kit is designed around the ZL1 mounting arrangement. Contact Katech Technical Sales before ordering for vehicles with modified fuel lines, relocated fuel system components, or an aftermarket supercharger.

Important Installation Notes

• Installation Access: The Published Procedure Specifies Removal of the Supercharger and Intake Assembly
• Bracket Mounting: Uses Existing Firewall Mounting Points and OEM Nuts; No Drilling Required
• FlexFuel Configuration: Select the Supplied Quick-Disconnect Fitting Appropriate for Installation with or Without a Sensor
• Fuel Line Routing: Follow the Supplied Instructions and Keep the Line Clear of Heat, Abrasion, and Pinch Points
• Connections: Verify That All Fittings and Quick-Disconnect Connections Are Properly Secured
• System Verification: Check for Leaks and Verify Fuel Supply Pressure After Installation
• FlexFuel Operation: Sensor Wiring and Appropriate Calibration Are Separate Requirements When Adding FlexFuel Functionality

Why Choose Katech

The Katech Gen 6 Camaro ZL1 Remote Fuel Filter Kit brings the filter, mounting bracket, connection fittings, and fuel line together in an application-specific package. Its mounting arrangement uses existing vehicle provisions, while the included adapters accommodate installations with or without a FlexFuel sensor.

Contact Katech Technical Sales at 586-791-4120 for assistance coordinating filtration with your fuel pump module and vehicle configuration.
