Katech Gen 6 Camaro / CTS-V3 High-Performance Dual Fuel Pump Controller & Integration Harness

Katech Gen 6 Camaro / CTS-V3 High-Performance Dual Fuel Pump Controller & Integration Harness

Secondary Fuel Pump Control for Gen 6 Camaro and CTS-V3 Applications

The Katech Gen 6 Camaro / CTS-V3 High-Performance Dual Fuel Pump Controller & Integration Harness provides secondary fuel pump control for vehicles equipped with the Katech Gen 6 Camaro / CTS-V3 High-Performance Low-Side Dual Fuel Pump Module. The assembly combines a VaporWorx controller with an application-specific harness to integrate the secondary in-tank pump with the vehicle's fuel system.

The primary fuel pump remains controlled by the factory Fuel Pump Control Module (FPCM), while the supplied controller operates the secondary pump. This arrangement supports dual-pump operation in compatible high-output LT1 and LT4 applications.

No cutting or drilling of the vehicle body is required. Installation includes harness routing, electrical connections, terminal crimping, and controller mounting. Depending on the supplied harness version, factory connector terminals may need to be transferred into the provided connector housing.

Features & Benefits

• Dedicated Module Compatibility: Designed for Use with the Katech Gen 6 Camaro / CTS-V3 High-Performance Low-Side Dual Fuel Pump Module
• Secondary Pump Control: Supplied VaporWorx Controller Operates the Additional In-Tank Fuel Pump
• Factory Primary Pump Control: Retains Operation Through the Factory FPCM
• Application-Specific Harness: Provides Connections for the Compatible Vehicle and Fuel Pump Module
• Body Installation: No Cutting or Drilling of the Vehicle Body Required
• Continuous Current Rating: Minimum 40A Continuous Current Capacity
• Operating Voltage: 10–22V Range
• Electrical Protection: Integrated Short-Circuit Protection
• Controller Operation: No Additional Tuning Required to Operate the Controller

Technical Specifications

Vehicle Fitment

Chevrolet:

• 2016–2024 Camaro SS: LT1 Engine
• 2020–2024 Camaro LT1: 6.2L LT1 Engine
• 2017–2024 Camaro ZL1: LT4 Engine

Cadillac:

• 2016–2019 CTS-V: Third-Generation CTS-V with LT4 Engine

Requires the compatible Katech Gen 6 Camaro / CTS-V3 High-Performance Low-Side Dual Fuel Pump Module. Confirm the correct module, harness configuration, and installation procedure for your vehicle with Katech Technical Sales before ordering.

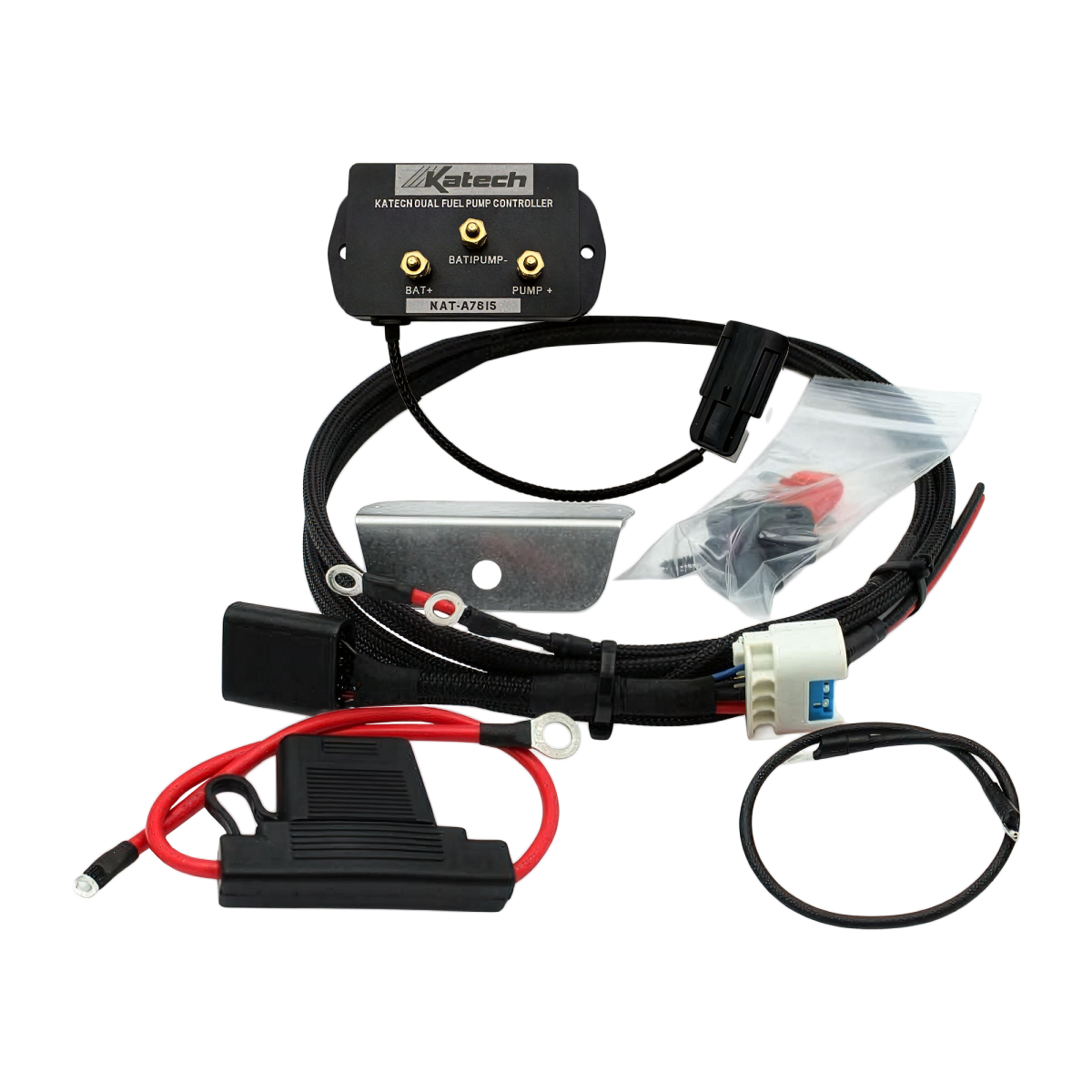

What's Included

• VaporWorx Dual Fuel Pump Controller
• Application-Specific Integration Harness

Fuel Pump Module: Sold separately.

Important Installation Notes

• Installation Procedure: Follow the Supplied Instructions for Your Vehicle and Harness Version
• Electrical Connections: Terminal Crimping Is Required; Some Harness Versions Also Require Transferring Factory Connector Terminals
• Harness Routing: Secure Wiring Away from Exhaust Heat, Abrasion, Suspension Components, and Pinch Points
• Body Modifications: No Cutting or Drilling of the Vehicle Body Required
• Voltage Boosters: Keep Voltage Within the Controller's 10–22V Operating Range and the Connected Fuel Pumps' Ratings
• Fuel System Requirements: Follow the Compatible Fuel Pump Module's Installation and Filtration Requirements
• Calibration: No Additional Tuning Is Required for Controller Operation; Engine and Fuel System Modifications May Require Calibration Changes

Why Choose Katech

The Katech Gen 6 Camaro / CTS-V3 High-Performance Dual Fuel Pump Controller & Integration Harness pairs a dedicated secondary pump controller with a harness selected for the compatible fuel pump module and vehicle platform. This provides a coordinated electrical solution while retaining factory control of the primary pump.

Contact Katech Technical Sales at 586-791-4120 for assistance selecting the correct fuel pump module, controller, harness, and supporting components for your Camaro or CTS-V3.
