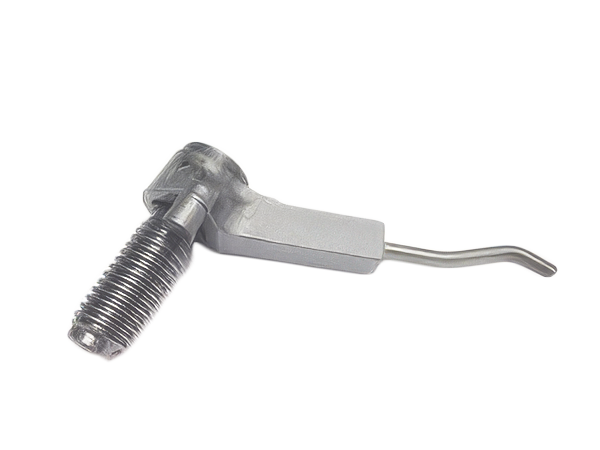

Katech RHS Block Piston Oil Squirter Nozzles

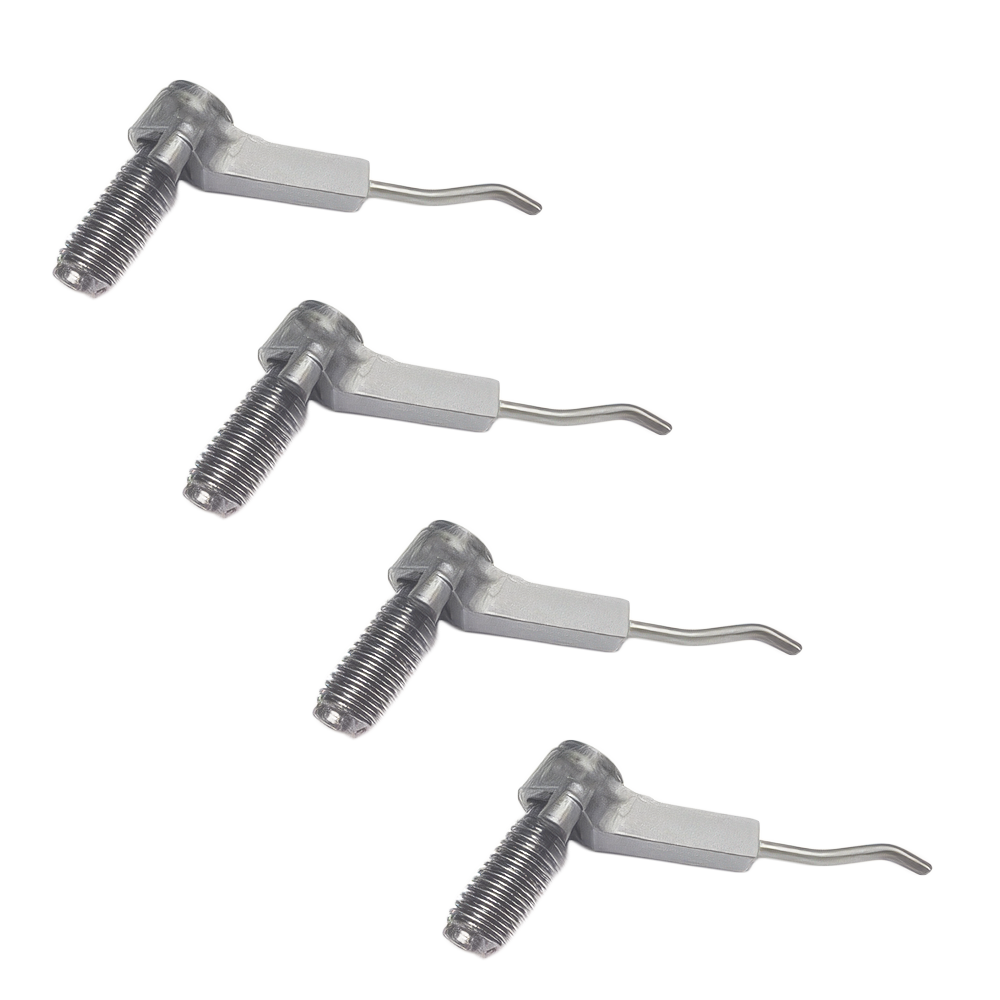

Katech RHS Block Piston Oil Squirter Nozzle Set of 4

Four-Nozzle Package for Piston Oil Cooling in Compatible RHS Engine Builds.

The Katech RHS Block Piston Oil Squirter Nozzle Set of 4 brings together the four nozzles required for a compatible RHS engine application. Designed for a 4.500-inch crankshaft stroke, this package provides the nozzle quantity needed when assembling an engine or replacing its full nozzle complement.

Set of Four: Each purchase includes four piston oil squirter nozzles. These nozzles are for RHS blocks only.

Features & Benefits

• Four-Nozzle Package for a Compatible RHS Engine Application
• Designed for a 4.500-Inch Crankshaft Stroke
• Application-Specific Configuration for RHS Engine Blocks
• Supports Piston Oil Cooling
• Provides the Required Nozzle Quantity in One Purchase

Technical Specifications

• Package Type: Piston Oil Squirter Nozzle Set
• Quantity Included: Four Nozzles
• Block Compatibility: RHS Engine Blocks Only
• Designed Crankshaft Stroke: 4.500 Inches
• Required Block Preparation: Liner Clearancing on One Bank per Installation Instructions
• Additional Clearance: Piston Skirt Clearancing May Be Required Depending on Piston Design

What's Included

• Four Katech RHS Block Piston Oil Squirter Nozzles

Engine & Block Fitment

The Katech RHS Block Piston Oil Squirter Nozzle Set of 4 is intended exclusively for compatible RHS engine blocks. It is not intended for stock GM LS or LT blocks.

Confirm the specific RHS block configuration, crankshaft stroke, and piston design before assembly. Nozzle fitment must be verified against the completed rotating assembly.

Block Preparation & Installation

Liner Clearancing Required: Installation requires clearancing the liners on one bank according to the nozzle installation instructions. Complete this preparation before final engine assembly.

• Follow the RHS-Specific Installation Procedure
• Check Clearance at All Four Nozzle Locations
• Verify Piston Skirt and Rotating Assembly Clearance Throughout the Complete Engine Cycle
• Perform Additional Piston Skirt Clearancing if Required by the Piston Design
• Install and Position Each Nozzle According to the Supplied Instructions
• Use the Specified Fastener Tightening Procedure

Why Choose Katech

Planning piston oil cooling during an RHS engine build requires the correct nozzle configuration and careful clearance checks. The Katech RHS Block Piston Oil Squirter Nozzle Set of 4 simplifies parts selection by packaging the four required nozzles together, with clearly defined stroke and block preparation requirements.

For RHS block compatibility and installation questions, contact Katech Technical Sales at 586-791-4120.
