Katech LS Billet Steel Main Caps

Katech LS Billet Steel Main Caps

BILLET STEEL CONSTRUCTION · POSITIVE DOWEL PIN LOCATION · ENGINEERED FOR HIGH-PERFORMANCE LS BUILDS

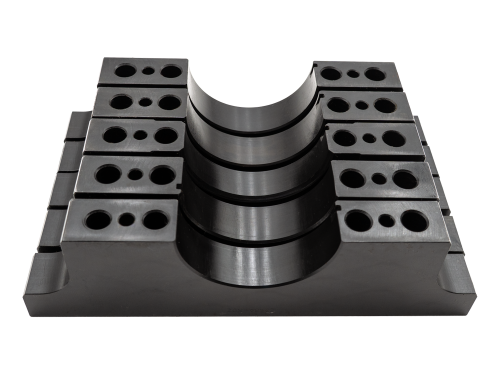

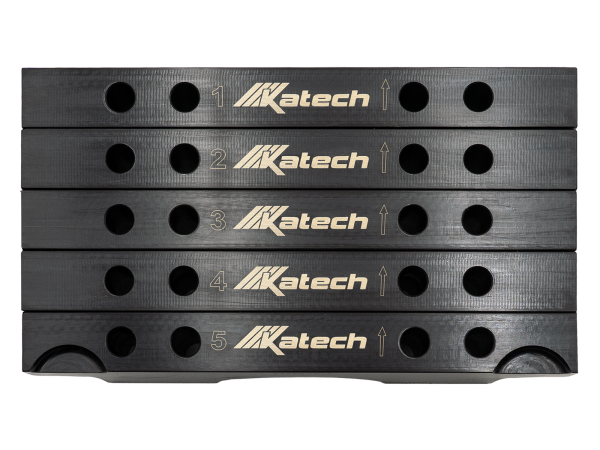

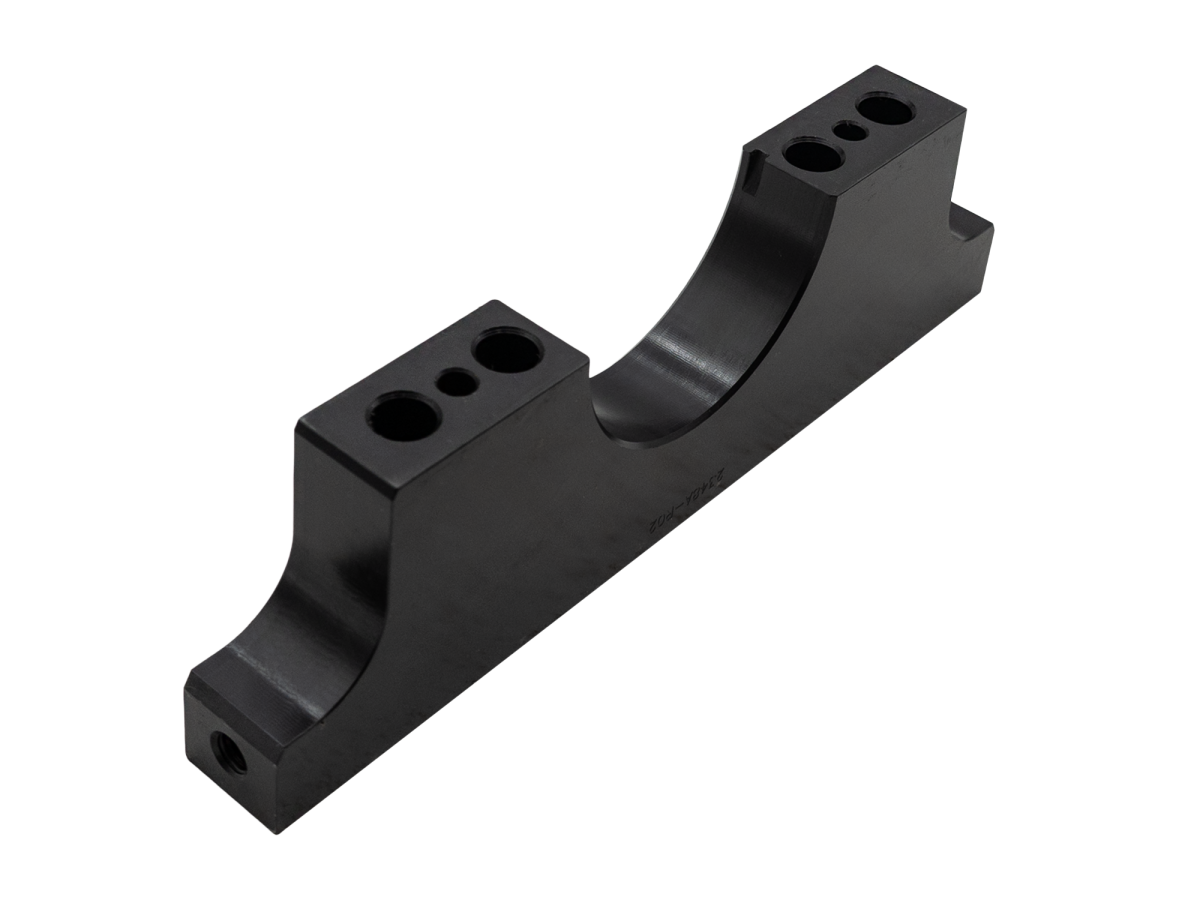

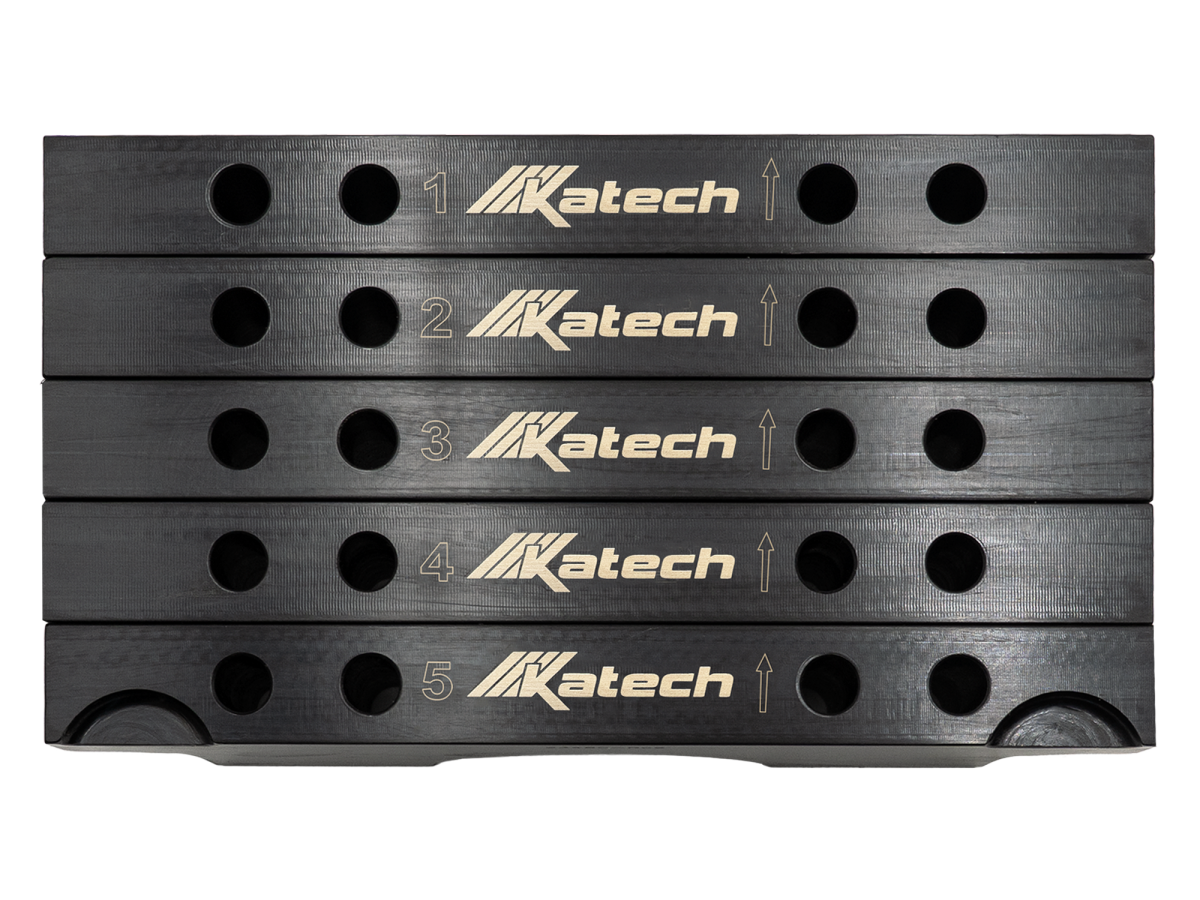

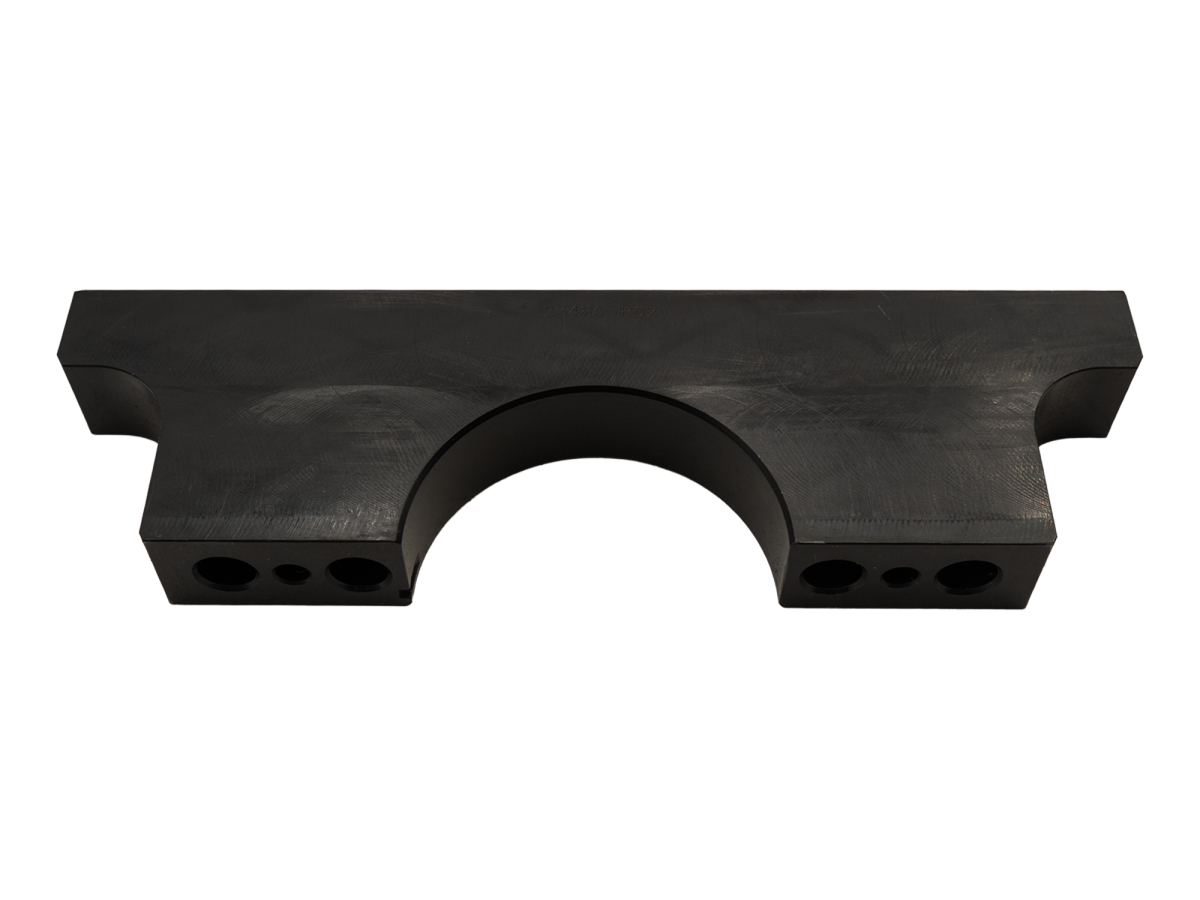

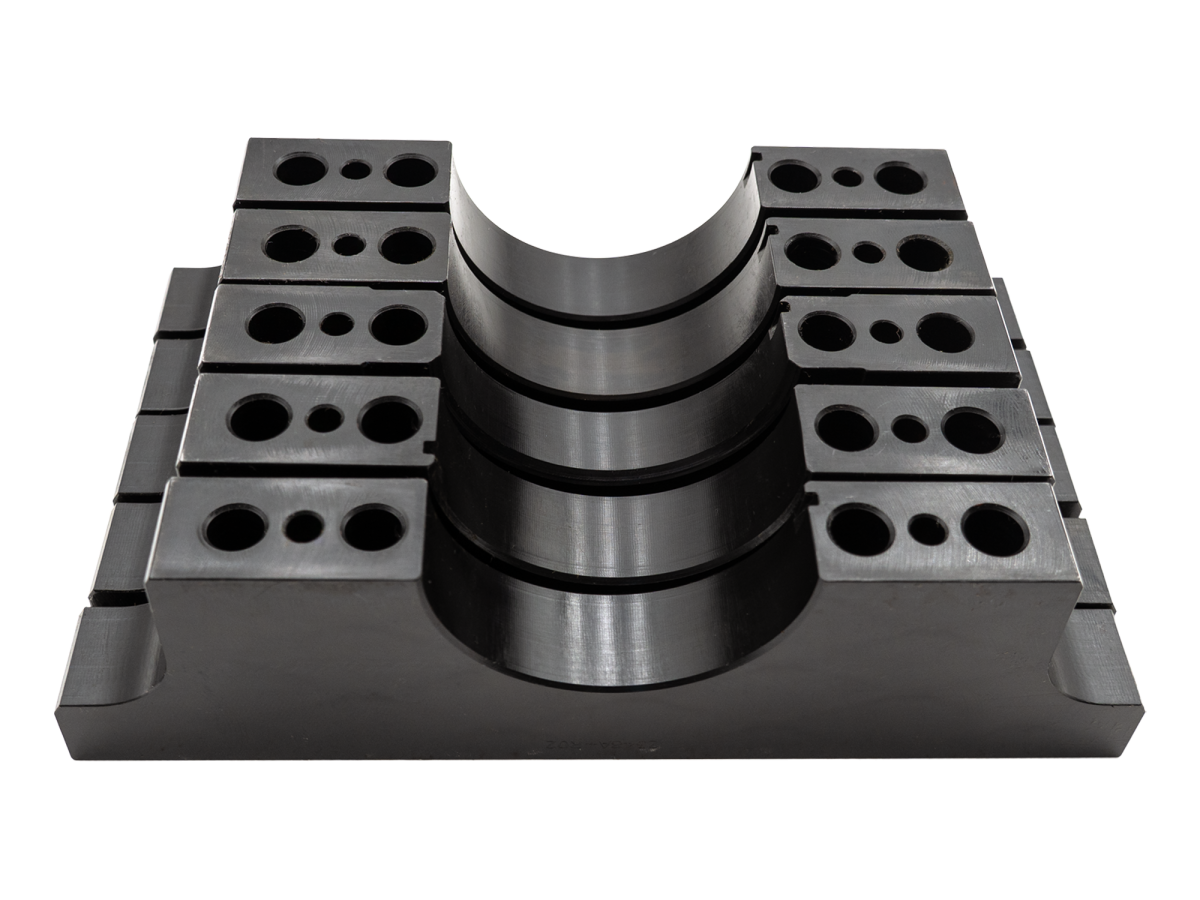

Katech LS Billet Steel Main Caps are engineered to strengthen the bottom end of compatible GM Gen III and Gen IV LS Engine Blocks used in demanding street, racing, boosted, and nitrous-assisted applications. Precision-machined from billet steel, the caps provide increased strength, while dual 1/4-inch Steel Dowel Pins positively locate each cap within the Engine Block to improve main cap stability and alignment.

Unlike factory LS Main Caps that rely on the cast aluminum register walls for location, the Katech design uses dual 1/4-inch Steel Dowel Pins to positively locate each cap within the Engine Block. Installation requires precision Engine Block machining by a qualified engine machine shop.

Features & Benefits

• Precision-Machined Billet Steel Construction
• Complete Set of Five Billet Steel Main Caps
• Dual 1/4-Inch Steel Dowel Pin Locating System
• Provides Positive Main Cap Location Within the Engine Block
• Designed to Help Maintain Main Cap Alignment Under High Engine Loads
• Provides Increased Strength Compared with Factory LS Main Caps
• Suitable for Naturally Aspirated, Supercharged, Turbocharged, and Nitrous-Assisted Engine Builds
• Engineered and Machined by Katech Engineering in Clinton Township, Michigan, USA!

Specifications

• Product Type: Main Cap Set
• Engine Family: GM Gen III and Gen IV LS
• Material: Billet Steel
• Main Caps Included: Five
• Locating System: Dual 1/4-Inch Steel Dowel Pins
• Installation: Engine Block Machining Required

Vehicle & Engine Fitment

Chevrolet

• 1997–2004 Chevrolet C5 Corvette with LS1 5.7L Engine
• 2001–2004 Chevrolet C5 Corvette Z06 with LS6 5.7L Engine
• 2005–2007 Chevrolet C6 Corvette with LS2 6.0L Engine
• 2008–2013 Chevrolet C6 Corvette with LS3 6.2L Engine
• 1998–2002 Chevrolet Camaro with LS1 5.7L Engine
• 2010–2015 Chevrolet Gen V Camaro SS with LS3 6.2L Engine

Cadillac

• 2004–2005 Cadillac CTS-V with LS6 5.7L Engine
• 2006–2007 Cadillac CTS-V with LS2 6.0L Engine

Pontiac

• 1998–2002 Pontiac Firebird with LS1 5.7L Engine
• 2004 Pontiac GTO with LS1 5.7L Engine
• 2005–2006 Pontiac GTO with LS2 6.0L Engine

Engine Applications

• GM Gen III LS1 Engine Blocks
• GM Gen III LS6 Engine Blocks
• GM Gen III LM7 Engine Blocks
• GM Gen III LQ4 Engine Blocks
• GM Gen III LQ9 Engine Blocks
• GM Gen IV LS2 Engine Blocks
• GM Gen IV LS3 Engine Blocks
• GM Gen IV L92 Engine Blocks

Important Fitment Notes

• Designed for Compatible GM LS1, LS2, LS3, LS6, L92, LQ4, LQ9, and LM7 Engine Blocks
• Verify Engine Block Compatibility Before Ordering
• Engine Block Machining Is Required for Main Cap Installation
• Machining Is Required for Installation of the Dual 1/4-Inch Steel Dowel Pins
• Align Boring and/or Align Honing Is Required After Main Cap Installation
• Katech Recommends an ARP LS Main Stud Kit for Increased Clamping Force and Durability
• Final Main Bearing Bore Dimensions Must Be Verified by a Qualified Engine Machine Shop

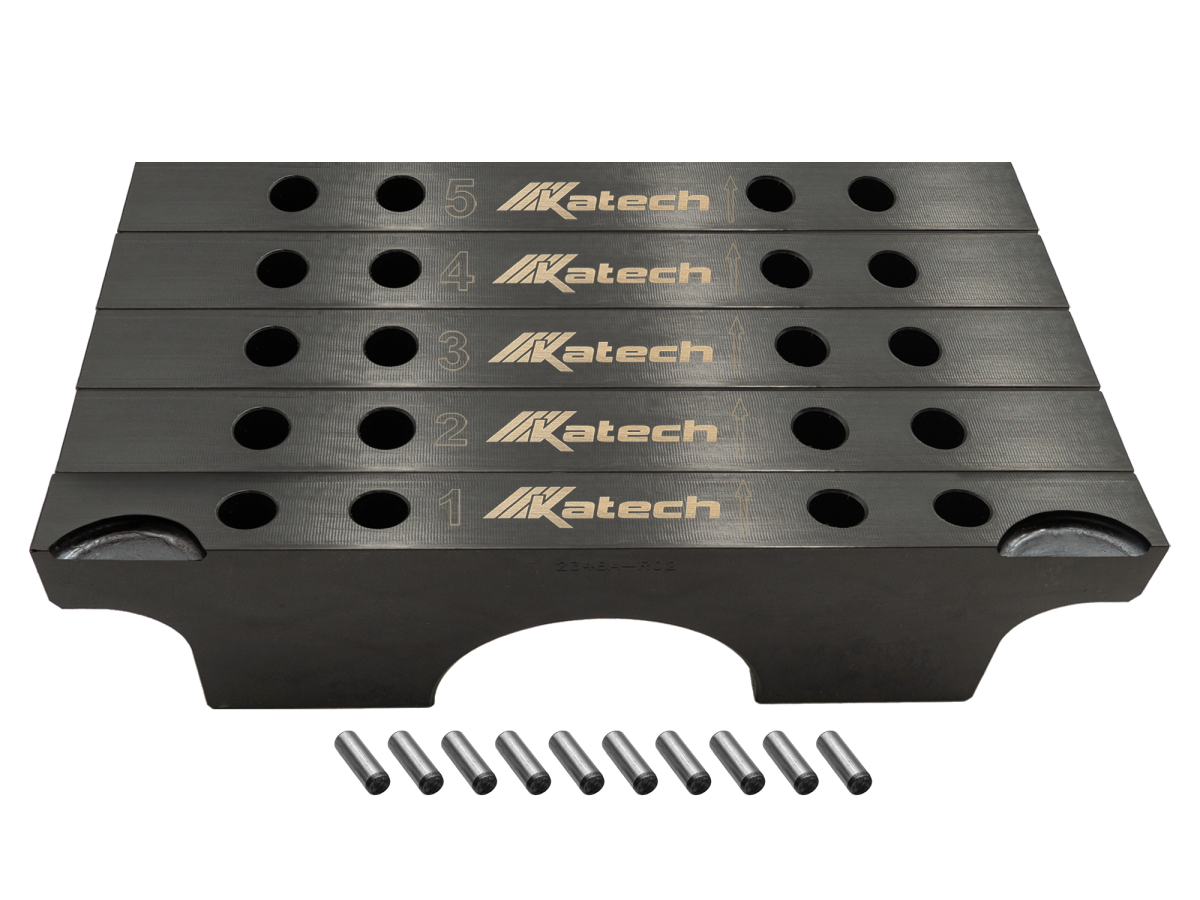

What’s Included

• Five Katech Billet Steel Main Caps
• Steel Dowel Pins

Why Choose Katech?

Since 1977, Katech has engineered championship-winning engines and precision performance components for professional motorsports, OEM development programs, engine builders, and performance enthusiasts. Every Katech component is developed with an emphasis on strength, accuracy, and dependable performance.

Katech LS Billet Steel Main Caps combine precision-machined billet steel construction with a positive dual-dowel locating system to provide a stronger, more stable foundation for high-performance LS Engine Builds.
